PP material Structured Trickling cooling water media cooling tower filling
OW cooling tower fill belong to counter flow cooling tower fill, it is glued together to be a block which is full of the middle bottom in tower. The thickness are 0.28mm 0.38mm; the width are 150mm,305mm,610mm; the length are 1200mm,1800mm,2000mm,2400mm;The pitch distance are 12mm,15mm,19mm and 25mm.The pitch 12mm 19mm is normal size. The cooling tower fill is also called CF1900,CF1200. It means the Trickling Filter Media will be glue to be a block which size is 305x305x1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.
Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the Cooling tower fill to make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
Cooling Tower Fill Features:
1.Light weight, high strength.
2.Good fire resistant, Ventilation resistance small.
3.Anti-corrosive, long service time.
4.Large contact area and strong wetting ability.
The heat resistance is the main factor influencing the cooling efficiency for the cooling tower PVC fill. And the quality of the
raw material used for producing cooling tower PVC fill will influence the cooling tower fill's service time. Latino always adapt
the high quality cooling tower PVC fill for the cooling tower.
This type cooling tower PVC fill is designed for the factory-assembled counterflow cooling towers.
Name
| OW cooling tower fill PVC cooling tower filler plastic sheet for cooling tower
|
Material
| PVC, PP
|
Nomal Size
| 305mmx305mmx1200mm,150*305*1200mm,610*305*1200mm
|
Fluted size
| 12mm,19mm
|
Shaping mode
| Plastic extrusion mould
|
Sheet thickness
| 0.28-0.37MM ,also can be customized
|
Packing Details
| In bundle, wooden pallet or as requested
|
Sample Time
| 1-2days
|
Production Date
| Within 20days
|
Detail of cooling tower fill PVC cooling tower filler plastic sheet for cooling tower fill
610mm 19pitch width OW cooling tower fill/ film fill packing
915mm 19pitch width OW cooling tower fill/ film fill packing

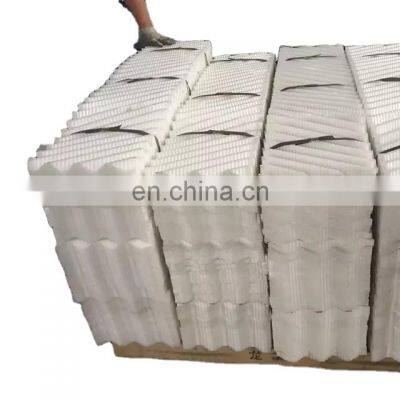

The block picture of OW cooling tower fill/ film fill packing
Any purchase need about PP material Structured Trickling cooling water media cooling tower filling , please contact alisa freely
>>
