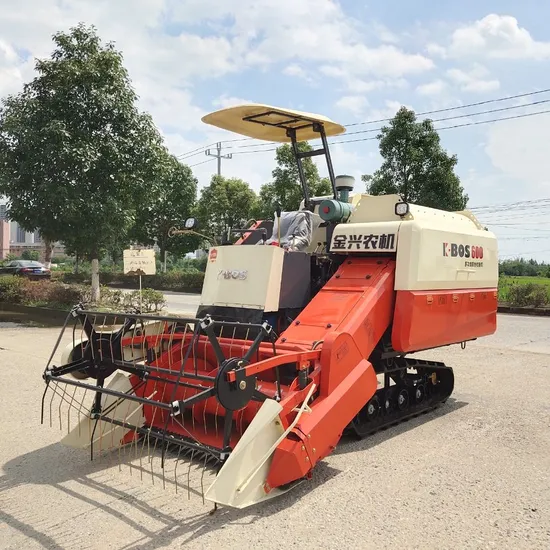

It is the FIRST small Longitudinal axial flow combine in China, specially designed for small field, like mountain areas, hills and island area;
Tight constructure, light weight, wide rubber track, offer this model a low ground pressure, ensure it move and work efficiently, safely in muddy area;
HIGH-STRENGTH engineering plastic sieve is light and durable and offer the lowest breakage and highest purity;
FIVE-BAR pickup reel is good at lodging crops harvesting and offer the lowest header loss;
It is an easy-operation and energy-saving combine, and also multi-functional for corn, rape seed, soybean etc.
| Overall Dimension | Length×Width×Heights ( mm ): 4200×2035×2080 |
| Weight (kg) | 2200 |
| Feeding Capacity( kg/s ) | 2.2 |
| Harvesting Capacity(hm²/h): | 0.2-0.4 |
| Engine | Engine Model: N490 |
| Rated Power ( kw/hp ): 34 / 46 |
| Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. |
| Driving System | Crawlers(mm): 91*43*400 |
| Minimum Ground Clearance (mm): 280 |
| Type of Gearbox: Mechanism + HST(3F, 3R) |
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 |
| Cutting Bar Length ( mm ): 1530 |
| Type of Cutting Bar Auger: Screw Conveying. |
| Rape Seed Extension: Optional |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 550*1505 |
| Vibrating Sieve: Adjustable sieve or Round hole sieve. |
| Blower Fan: Type: Swirl; Diameter( mm ): 355; Nos: 1 |
| Grain Storing | Option 1: Big Grain Tank with Unloading Auger, Capacity ( L): 950 |
| Option 2: Small Grain Tank: Manual Operation. |
