Standard Container Trailer with Air Suspension for Trucks Tractor

Product Description

Standar Product Description

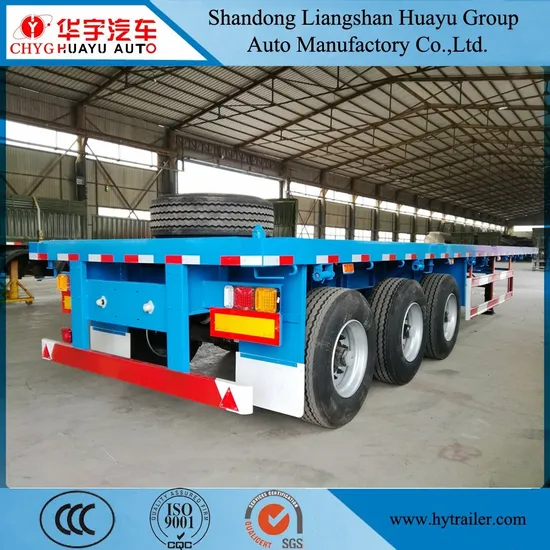

12.5M 40Ton 3 AXLE FLATBED SEMI TRAILER
DIMENSIONS
Tare weight	6800kg
Size	12500mm*2500mm*1500mm
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes.
Side beam	16# channel steel(Q235)
Cross member	10# channel steel(Q235)
Floor	3mm diamond plate
Axle	13 Ton *3axles
Suspension	Three axles with mechanical suspension
Leaf spring	Leaf spring 13mm*90mm*10 piece *6 sets
Tyre	12R22.5*12units
Wheel rim	9.0-20 *12pcs
Kingpin	2"/3.5" bolt-in king pin
Landing gear	28Ton two-speed, manual operating ,heavy duty landing gear
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Without
Twist lock	12 pcs
Electrical system	Voltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable.
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint. Prevention of seawater corrosion with wax spray.
Accessories	One standard tool box.one spare tire carrier,one crank,one shaft head wrench,Rope hook casting model.Tight rope device *12units
Date of delivery	15workdays

Detailed Photos
Product Parameters

12.5M 40Ton 3 AXLE FLATBED SEMI TRAILER
DIMENSIONS
Tare weight	6800kg
Size	12500mm*2500mm*1500mm
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes.
Side beam	16# channel steel(Q235)
Cross member	10# channel steel(Q235)
Floor	3mm diamond plate
Axle	13 Ton *3axles
Suspension	Three axles with mechanical suspension
Leaf spring	Leaf spring 13mm*90mm*10 piece *6 sets
Tyre	12R22.5*12units
Wheel rim	9.0-20 *12pcs
Kingpin	2"/3.5" bolt-in king pin
Landing gear	28Ton two-speed, manual operating ,heavy duty landing gear
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Without
Twist lock	12 pcs
Electrical system	Voltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable.
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint. Prevention of seawater corrosion with wax spray.
Accessories	One standard tool box.one spare tire carrier,one crank,one shaft head wrench,Rope hook casting model.Tight rope device *12units
Date of delivery	25workdays

Certifications ISO 9000 CCC BV SGS
Packaging & Shipping 2 Units put into one 40HQ container
Wax spray and one stack of 3 sets to reduce shipping fee.

Installation Instructions A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting line
Company Profile
Our Advantages This 40ft flatbed semi trailers' payload is 40 tons. It could meet your transportation demand of container, bulk cargo. The front board design enhances the security when the platform trailer carries the long tube. etc.
The trailer chassis is designed according to Africa road conditions, we did the necessary reinforcement process to ensure its durability. Liangshan Huayu has rich experience in the overseas market. The flatbed trailer is one of our most mature design trailers. Its average working life is over 10 years.

---
