Basic Info.
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
1 Channel
Audio Input/Output
1 Channel
Remote Control
Without Remote Control
10 Inch Monitor
Full View Screen 1280*800
Usage
Pipe/Medical /Industrial Application
Storage
TF Card 2GB-256GB
Horizontal Resolution
4096*3112 ,2K,1080P,720p,CVBS
Transport Package
1PC/Gift Box,
Production Capacity
3000PCS/Month
Product Description

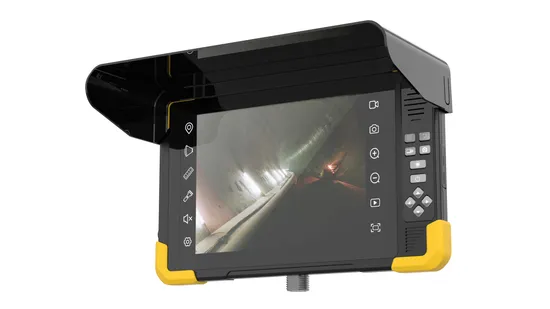

10inch 4k wifi Portable Full HD Touch Screen Monitor 256GB Memory AHD DVR
Model: RD100S
Features:
1. 10.1 Inches LCD Widescreen resolution pc display: 1280*800 px Compatible with1920*1200 px , aspect ratio: 9:16 or 4:3, Power supply within 12V 2. Support 4K,2K,1080P Record, photo, playback,10 times zoom, compatible with recording monitoring, vehicle monitor, car backup screen, or for gaming, computer display 3. PAL/ NTSC Switch automatically, 12V AC adapter 4. Portable Size& Easy to install /portable: adjustable stand, allow you to have a good view of what it inspects 5. With desktop stand and sun visor
6200mah li-battery 4K AHD monitor Specification
| Display | 10.1 inch 1280 * 800 px |
| Touch screen structure process | In cell original capacitive touch |
| Video recording | 4K(16:9): 3840x2160@25 /30fps |
| 2K(4:3): 2560x1944@25 /30fps |
| 2K(16:9): 2560x1440@25 /30fps |
| 1080p(16:9): 1920X1080@25 /30fps |
| Video input | 4K 25fps,4K 30fps,2K 25fps, 2K 30fps,1080P 25fps,1080P 30fps,720P 25fps, 720P 30fps,CVBS pal, CVBS ntsc |
| Video format | MP4 |
| picture | 12MP,8MP,4MP,2MP |
| Video pixels (16:9) | HDMI |
| Compression mode | H. 264 video compression |
| Audio input/output | 1.0Vp-p (20Hz-20KHz) |
| Speaker Output | 1W |
| Memory card | TF card 2GB-256GB |
| language | varied |
| Voltage | DC :12V USB DC:5V |
| WiFi Protocol | 802.11 a/b |
| WiFi Channel | 2.4000-2.4835Ghz |
| WiFi power | <16dBm |
| Power Supply | DC 12V 2A |
| lithium battery | 6200mAh( 48Wh)*2 |
| Single machine working time | 12 hours |
| Complete working time | 8 hours |
| Waterproof grade | IP65 |
| Screen size&weight | L*W*H 30*19*1.8CM,865g |
>>
