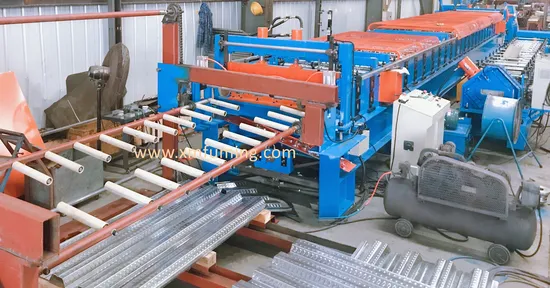

| ROLL FORMING MACHINE FOR YX50-232.5-930/960 DECKING PROFILE |
|
| Material Specification |
| Thickness | 0.7mm to 1.2mm |
| Effective width | 930mm/960mm |
| Feeding width | Approx.1219mm/1250mm |
| Material | GI |
| Yield strength | 300MPa-550MPa |
| |
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max. 1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| |
| Hydraulic Pre-shearing Device |
| Hydraulic Pre-shearing device, manual control |
| Only for cutting the first piece and the end piece of the sheet | |
| |
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 26 stages |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ95mm |
| Main motor | 15KW×2 |
| Line speed of rollformer | Approx. 18m/min |
| |
| Hydraulic Cutting Device |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 5.5KW |
| |
| PLC Control System |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
| |
| 12 Meters Stacker | One unit |
