Horizontal Oil Country Metal Turning Lathe Q1327 Pipe Threading Machine

Product Description

This versatile series of pipe thread lathes excels in processing both intricate internal and external pipe threads, while seamlessly transitioning to function as standard lathes. Whether working on the outer circle, inner hole, or end face of shafts, pipes, and disc parts, it delivers remarkable precision. Its widespread application in the petroleum sector includes processing and repairing drill pipes, joints, casings, and other components. Moreover, it serves diverse industries such as coal, chemical, water conservancy, and geological exploration, expertly handling thread processing for various pipelines and drill pipes.
√ The substantial spindle bore combined with the robust double chuck design enables secure clamping and efficient processing of large-diameter pipes with ease;
√ The integral machine bed crafted from high-strength iron ensures exceptional rigidity and precision, making it a powerhouse for demanding tasks;
√ Ultrasonic frequency quenched guide-ways deliver outstanding wear-resistance, enhancing the machine's longevity and reliability;
√ Featuring a taper guide bar device, it adeptly handles the processing of taper threads with precision and ease.
Double Chuck
The remarkable design of the big spindle bore and double chuck facilitates secure clamping and proficient processing of large-diameter pipes, ensuring optimal performance and precision.
Quenched Guide
Our ultrasonic frequency quenched guide-ways offer unmatched hardness, providing exceptional wear-resistance and ensuring the machine's durability over extended periods of rigorous use.
Tool Post Turret
Outfitted with a standard 4-station electric tool post, this machine offers optional upgrades to 6, 8, 10, or 12 station turret tools. Enjoy swift tool change speeds with pinpoint accuracy, significantly boosting operational efficiency.
Tailstock
Featuring a standard manual tailstock, this model also presents optional hydraulic or pneumatic tailstock choices, meticulously tailored to meet your specific operational requirements.
Horizontal Oil Country Metal Turning Lathe Q1327 Pipe Threading Machine

Item		Unit	Q1327
Max diameter swing over bed		mm	800
Max diameter swing over cross slide		mm	480
Max length of workpiece		mm	1500
Width of bed		mm	600/650
Spindle bore		mm	280
Power of spindle motor		kw	15
Spindle speed		r/min	VF2 step 20-300
Z axis feed grade/range		mm/r	32/0.095-14
X axis feed grade/range		mm/r	32/0.095-14
Carriage rapid traverse speed		mm/min	3740
Cross slide rapid traverse speed		mm/min	1870
Metric thread grade/range		mm	22/1-15
Inch thread grade/range		T.P.I	26/14-1
Module thread grade/range		mm
DP thread grade/range		D.P.
Traverse of cross slide		mm	420
Max traverse of turret		mm	200
Tailstock quill travel		mm	250
Tailstock quill diameter/taper		mm	Φ100/MT6#
Chuck			middle Φ630 4-jaw manual chuck
Dimension		mm	3750*1700*1600
Net weight		T	6.5

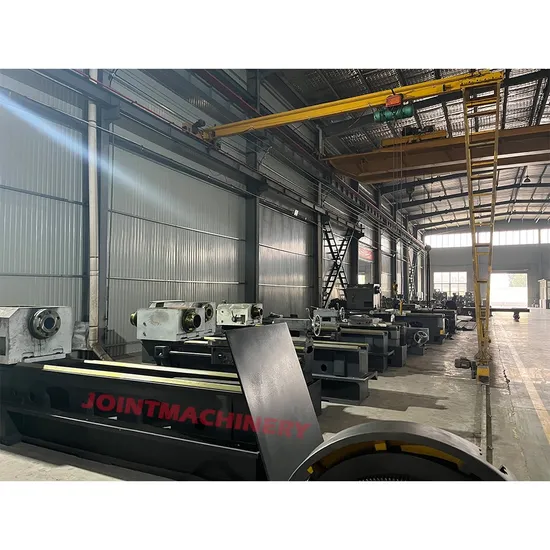

Shenzhen Joint Machinery Co., Ltd. stands at the forefront as a premier manufacturer and exporter of top-tier CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. We are dedicated to delivering unmatched quality machinery alongside exemplary service to our global clientele. Upholding stringent quality control and continuous innovation, we ensure our products consistently achieve the apex of industry standards. By harnessing core technologies from Taiwan and Germany, coupled with state-of-the-art production equipment and methodologies, we offer machinery renowned for its superior precision, stability, and reliability. Our machines masterfully cater to complex and high-demand machining tasks across the globe, spanning Asia, Europe, South America, North America, and beyond. Our products have earned extensive acclaim and popularity, as we nurture lasting partnerships with international clients, collaboratively driving substantial business value.

---
