Stickers label Flat Bed Die Cutting Machine of Paper Waste Stripping

Product Description

Product Description Stickers Lable Flat Bed Die Cutting Machine of Paper Waste Stripping

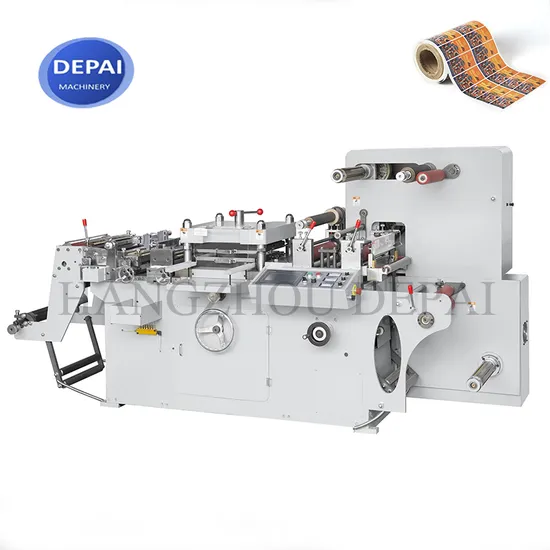

FD320 is a kind of flat-bed die cutting machine with high precision. The paper-going is controlled by servo motor. Three photoelectric eyes do the web-guiding job. die cutting, laminating, waste rewinding, paper sheeting or rewinding can be finished in the process, the machine is applicable to die cut self adhesive labels, dacron film labels and laser anti-false labels, it is an ideal auxiliary of flexo printing machine, screen printing machine, relief printing machine and so on.
Product Parameters Low speed

Model	FD320L	FD420L	FD520L
Die Cutting Speed:	20-220 times/min	20-200 times/min	20-140 times/min
Max. Unwind/Rewind Diameter	500mm	500mm	500mm
Max. Web width	320mm	420mm	520mm
Max. Die Cutting Area	300*320mm	400*420mm	500*520mm
Precision of next die cut	±0.1mm	±0.1mm	±0.1mm
Precision of web guide	±0.5mm	±0.5mm	±0.5mm
Total power:	4 kw	4.5 kw	10 kw
Power supply voltage:	220/380v	220/380v	380v
Machine weight	1700kgs	2000kgs	2400kgs
Dimensions	2750x1250x1400mm	3000x1500x1450mm	3200x1700x1700mm

Medium speed

Model	FD320M	FD420M	FD520M
Die Cutting Speed:	20-300 times/min	20-300 times/min	20-160 times/min
Max. Unwind/Rewind Diameter	500mm	500mm	500mm
Max. Web width	320mm	420mm	520mm
Max. Die Cutting Area	300*320mm	400*420mm	500*520mm
Precision of next die cut	±0.1mm	±0.1mm	±0.1mm
Precision of web guide	±0.5mm	±0.5mm	±0.5mm
Total power:	7.5 kw	8 kw	9 kw
Power supply voltage:	220/380v	220/380v	380v
Machine weight	1700kgs	2100kgs	2500kgs
Dimensions	2700x1000x1500mm	2900x1100x1500mm	3150x1200x1600mm

High speed

Model	FD320H	FD420H	FD520H
Die Cutting Speed:	20-350 times/min	20-350 times/min	20-200 times/min
Max. Unwind/Rewind Diameter	500mm	500mm	500mm
Max. Web width	320mm	420mm	520mm
Max. Die Cutting Area	300*320mm	400*420mm	500*520mm
Precision of next die cut	±0.1mm	±0.1mm	±0.1mm
Precision of web guide	±0.5mm	±0.5mm	±0.5mm
Total power:	7.5 kw	8 kw	9 kw
Power supply voltage:	220/380v	220/380v	380v
Machine weight	1700kgs	2100kgs	2500kgs
Dimensions	2700x1000x1500mm	2900x1100x1500mm	3150x1200x1600mm

Detailed Photos Standard functions Unwinding Roll Waste Discharge
Photocell Unit Web Guide System
Flat Type Die Cutting Sheeting Unit
Rewinding Roll PLC
Optional Functions Hot Foil Stamping Unit Hot Foil Stamping Unit
Punching Unit Laminating Unit
Round Cutters Razor Knife Sample Photos Our Factory
Packaging & Shipping
Certifications FAQ FAQ 1. Q: Are you trading company?
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.

4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.

---
