Universal Tool Mill Machine Um400b High Quality Double Table Milling Machine

Product Description

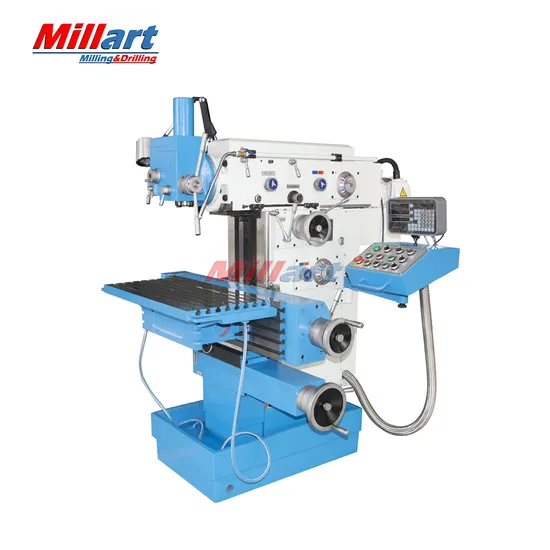

Universal Tool Mill Machine UM400B High Quality Double Table Milling Machine
Feature:
This machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.
1. Original structure, broad versatility, high accuracy, easy to operate.
2. With various attachments to extend range of application and raise utilization.
3. Model XS8140A: with Programmable digital display system, resolving power is up to 0.01mm.
Technical parameter:

Model		UM400B
Table	Horizontal table size	400*800mm
	Vertical table size	250*950mm
Travel X,Y,Z axis		500/350/400
Universal table	Horizontal swivel	±360°
	Vertical swivel	±30°
	Front and back swivel	±30°
Vertical mill head	Spindle travel	60mm
	Spindle swivel	±90°
Horizontal spindle	Taper	ISO 40
	Spindle line to ground	1330mm
	Min distance from spindle line to table	35mm
Vertical spindle	Taper	ISO 40
	Min distance from spindle nose to table	5mm
Spindle speed (Vertical and horizontal)		18steps 40-2000RPM
Feed rate		18steps 10-500mm/min
Vertical spindle feed rate		3steps 0.03-0.12mm/rev
Main motor and feed motor power		3KW/1.5KW
Work table max load and tools max load		400KG/500KG
Dimensions		182*164*171CM
Net weight		2200KG

Standard accessories:

Complete tools -with the machine 1 set

Milling cutter arbors and washers 1 set each

Reducing sleeves 1pcs each

Spring collets and collet chuck 2/3/4/5/6/8/10/12mm 1pcs each

Universal angular table

Optional accessories:

F11-125A Dividing head

QH125 Vice

TSL250 Rotary table

QH160 Vice

TSL320 Rotary table

3 Axis DRO

Ball lead screw
