| CANMAX SELF-LOADING CONCRETE MIXER CM4000 |
| | Integral frame chassis movable, self loading, mixing, transporting |
| PRODUCTIVITY | BATCH≤15MINS, 4BATCHS/HOUR |
| Driver | 4 x 4 |
| steering | Front steering |
| ENGINE | YUCHAI ENGINE: 91KW |
| SPEED | HIGH SPEED: 36.5KM/H; LOW SPEE:6.5KM/H |
| Gear number | Three forwards, three backwards |
| TIRE | 16/70-20 (Steel wire tyre) |
| DRUM | Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters |
| mixing drum 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |

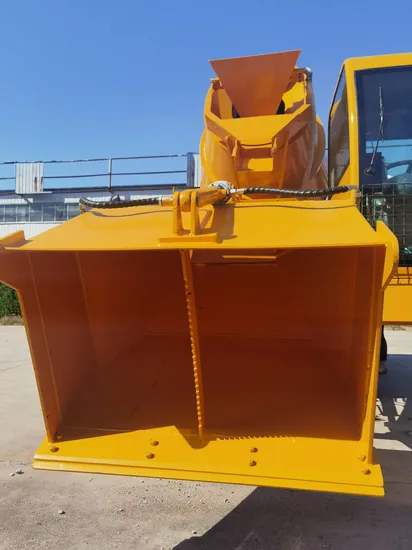

| SHOVEL | shovel capacity: 0.55³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| OPERATION HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE |
| WATER SUPPLY | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
| Water tank capacity | 520L |
| Diesel tank capacity | 180L |
| whole weight | 7600KG |
