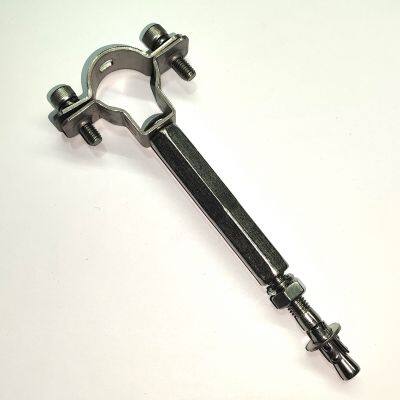

LCXFC-7/8A Fire-proof clamp for 7/8" leaky cable

Product Details

Product Description

Product Description
LCXFC-7/8A Fire-proof clamp for 7/8" leaky cable
PRODUCT DESCRIPTION
It is used for the installation of highway, low-speed railway tunnel and indoor signal coverage Radiating Coaxial Cable. It has the advantages of simple, safe and efficient, and can meet the requirements of less than or equal to 200km/h train speed requirements.
It is suitable for 7/8 " Radiating Coaxial Cable, fixed Radiating Coaxial Cable orientation, clamping Radiating Coaxial Cable to prevent its movement.
All metal parts are made of high quality 304 or stainless steel, We can also provide 316 stainless steel material according to customer needs.
In case of fire, the fire ring will not fall off after the plastic parts of the leaky cable falls off.
Halogen free and environmentally friendly. Compliant with ROHS directive.
TECHNICAL INDEX
Character of service
Ambient temperature during use : －45 ℃～＋85 ℃
Ambient temperature during installation: －20℃～＋60 ℃
Relative humidity for reliable operation: RH≤95%
Environmental performance
low temperature, -40 ℃±2 ℃, 72h No crack
high temperature, 150 ℃±2 ℃, 72h No crack
GDJS，25 ℃±3 ℃，＋80 ℃±2 ℃，（93±3）%，24h,10 times No crack
Salt spray resistance property，35 ℃±2 ℃，5 %，240 h No red rust
Solar radiation resistance No powder
Mechanical Specifications
Maximum Load 4500N (minimum)
Shear capacity 1000N (minimum)
MATERIAL INFORMATION
metallic parts 304 Stainless steel
Cable compatibility
Compatible radiating cable diameter, minimum 26mm
Compatible radiating cable diameter, maximum 29mm
Nominal Size 27.5mm
Recommended / Maximum Clamp Spacing 10m
Minimum Distance to Wall 80mm

---
