Factory Price Diesel 20m Xga20K Articulated Boom Lift for Aerial Work Platforms

Product Description

Product Description

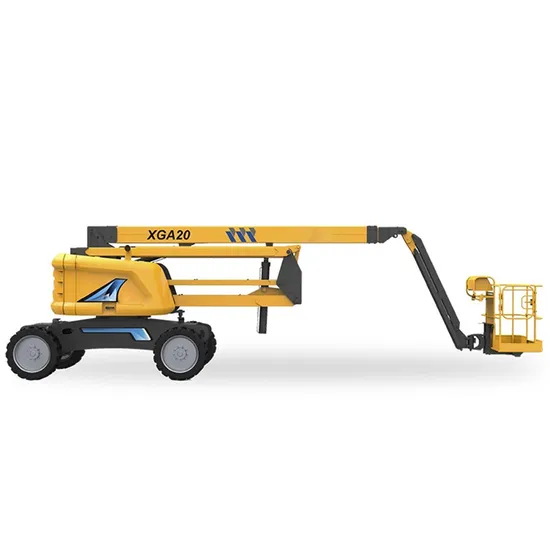

Factory Price Diesel 20M XGA20K Articulated Boom Lift for Aerial Work Platforms

20 meter level" Σ" The Y-shaped linkage folding hybrid arm frame mobile lifting work platform is a compact layout, efficient obstacle crossing, precise design, strong driving, and easy operation curved arm mobile lifting work platform. Four wheel drive, with a climbing ability of 45%, standard axle balance, and strong ground adaptability.
1. Impressive Working Height and Lift Capacity The XGA20K offers a working height of 20,630 mm, allowing workers to reach high places with ease. It has a lift capacity of 256 kg (unlimited) and 350 kg (limited), which means it can handle a considerable amount of load, whether it's for carrying workers and their tools or some light materials. 2. Compact and Efficient Design With a compact layout, the Y-shaped linkage folding hybrid arm frame design enables efficient obstacle crossing. This feature is crucial in construction sites or maintenance work where there may be various obstacles. The precise design also contributes to better operation and control of the lift.
3. Strong Driving Ability It is equipped with four-wheel drive, providing strong driving power. The 45% climbing ability allows it to work on slopes and uneven terrains. The standard axle balance and strong ground adaptability make it a versatile machine that can perform well in different working conditions.
4. Easy Operation Despite its powerful performance, the XGA20K is designed for easy operation. The control system is user-friendly, allowing operators to quickly get familiar with the machine and perform various tasks smoothly.
5. High-Quality Manufacturing and Reliability As a product of Xuzhou Construction Machinery Group (XC/MG), a well-known construction machinery manufacturer, the XGA20K is built with high-quality materials and advanced technology. It is reliable and durable, which can ensure long-term and stable use in various working environments.
Product Parameters

Item	Unit	XGA20K
Wheelbase	mm	2500
Max. working height	m	20.63
Max. platform height	m	18.63
Max. working range	m	12.08
Max. carrying weight	kg	256(unlimited)/350(limited)
Scope of luffing of No. 1 arm	°	0~+72
Scope of luffing of Boom No.2	°	0~+73
Crank arm luffing range	°	-64~70
Slewing angle of turntable	°	360
Max. Tail swing	mm	0.54
Dimension of platform	mm	1830×760×1150
Slewing angle of platform	°	160
Overall weight	kg	9900
Max. traveling speed	km/h	5.5
Min. turning radius	m	5.0
Min. ground clearance	mm	330
Max. gradeability	%	45
Specification of tire	/	355/55D625
Engine model	/	YCF3050-T302
Engine rated power	kW/(r/min)	36.8/(2400)
