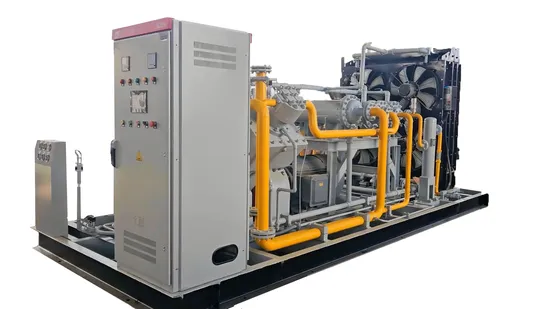

Oil Free High Pressure CNG Bog Natural Gas Oil Gas Chemical Gas Reciprocating Piston Nitrogen Booster Compressor with High Temperature Resistance Design

Product Description

Bobair specializing in the development and production of petrochemical gas compressor series, we has a complete range of products, many specifications, fast change, from the compressor type is divided into mobile, fixed, truck mounted, skid mounted, etc.; Compressed media are air, natural gas, liquefied petroleum gas, hydrogen, nitrogen, carbon dioxide and gas and other media; In terms of cylinder layout, it is divided into W type, VF type, ZW type, DW type, V type, VW type, WS type and compound type. From the cylinder lubrication method is divided into oil lubrication and no lubrication; The compression type is divided into reciprocating piston type and screw type. The exhaust volume ranges from 0.3m3 /min to 200m3/min, and the exhaust pressure ranges from 0.1Mpa to 500Mpa. The products are used in metallurgical machinery manufacturing, urban construction, mining, gas, petroleum, chemical, electric power, textile, biological, pharmaceutical, glass and other industries.

Compressed medium	Liquefied gas	Inlet pressure	0.1-1MPa
Exhaust pressure	0.7 MPa	Flow rate	180-990Nm³/h
Cooling method	air cooled	Temperature	≤50ºC
Control system	Non-explosion-proof PLC control	Lubrication method	Pressure lubrication
Motor power	18.5KW	Dimensions	3000X1800X1330mm
Features	Z type, smooth operation, low noise
Application	Used for residual gas recovery of liquefied gas tanks

Features
1. Specifically designed for process flow.
2. The whole machine is skid-mounted, with good structure and good sealing.
3. Stable operation, easy maintenance, and complete automatic control and protection.

PARAMETERS
No.	Model	Displacement (Nm3/h)	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Medium	Power
1	ZW-0.5/1.5	24	normal pressure	1.5	hydrogen	7.5
2	ZW-0.16/30-50	240	3	5	hydrogen	11
3	ZW-0.45/22-26	480	2.2	2.6	hydrogen	11
4	ZW-0.36/10-26	200	1	2.6	hydrogen	18.5
5	ZW-1.2/30	60	normal pressure	3	hydrogen	18.5
6	ZW-1.0/1.0-15	100	0.1	1.5	hydrogen	18.5
7	ZW-0.28/8-50	120	0.8	5	hydrogen	18.5
8	ZW-0.3/10-40	150	1	4	hydrogen	22
9	ZW-0.65/8-22	300	0.8	2.2	hydrogen	22
10	ZW-0.65/8-25	300	0.8	25	hydrogen	22
11	ZW-0.4/(9-10)-35	180	0.9-1	3.5	hydrogen	22
12	ZW-0.8/(9-10)-25	400	0.9-1	2.5	hydrogen	30
13	DW-2.5/0.5-17	200	0.05	1.7	hydrogen	30
14	ZW-0.4/(22-25)-60	350	2.2-2.5	6	hydrogen	30
15	DW-1.35/21-26	1500	2.1	2.6	hydrogen	30
16	ZW-0.5/(25-31)-43.5	720	2.5-3.1	4.35	hydrogen	30
17	DW-3.4/0.5-17	260	0.05	1.7	hydrogen	37
18	DW-1.0/7-25	400	0.7	2.5	hydrogen	37
19	DW-5.0/8-10	2280	0.8	1	hydrogen	37
20	DW-1.7/5-15	510	0.5	1.5	hydrogen	37
21	DW-5.0/7	260	normal pressure	0.7	hydrogen	37
22	DW-3.8/1-7	360	0.1	0.7	hydrogen	37
23	DW-6.5/8	330		0.8	hydrogen	45
24	DW-5.0/8-10	2280	0.8	1	hydrogen	45
25	DW-8.4/6	500	normal pressure	0.6	hydrogen	55
26	DW-0.7/(20-23)-60	840	2-2.3	6	hydrogen	55
27	DW-1.8/47-57	4380	4.7	5.7	hydrogen	75
28	VW-5.8/0.7-15	510	0.07	1.5	hydrogen	75
29	DW-10/7	510	normal pressure	0.7	hydrogen	75
30	VW-4.9/2-10	750	0.2	2	hydrogen	90
31	DW-1.8/15-40	1500	1.5	4	hydrogen	90
32	DW-5/25-30	7000	2.5	3	hydrogen	90
33	DW-0.9/20-80	1000	2	8	hydrogen	90
34	DW-25/3.5-4.5	5700	0.35	0.45	hydrogen	90
35	DW-1.5/(8-12)-50	800	0.8-1.2	5	hydrogen	90
36	DW-15/7	780	normal pressure	0.7	hydrogen	90
37	DW-5.5/2-20	840	0.2	2	hydrogen	110
38	DW-11/0.5-13	840	0.05	1.3	hydrogen	110
39	DW-14.5/0.04-20	780	0.004	2	hydrogen	132
40	DW-2.5/10-40	1400	1	4	hydrogen	132
41	DW-16/0.8-8	2460	0.08	0.8	hydrogen	160
42	DW-1.3/20-150	1400	2	15	hydrogen	185
43	DW-16/2-20	1500	0.2	2	hydrogen	28

Please feel free to contact us for different gas, flowrate, pressure etc.

---
