Product Description
Product Description

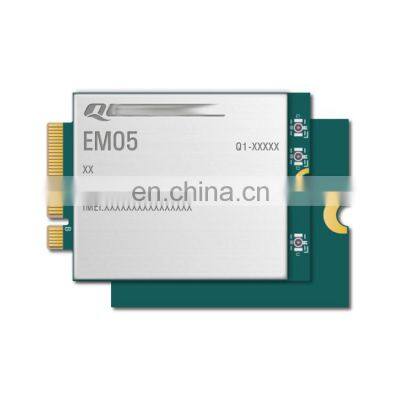

DescriptionLTE EM05 seriesLTE Cat 4 module(42.0±0.15)mm × (30.0±0.15)mm × (2.3±0.20)mmM.2 (NGFF) form factorMax. downlink 150Mbps / 50Mbps uplink under LTEExtended temperature range of -40°C to +85°COverviewThe EM05 is a series of LTE Cat 4 IoT modules in a standard M.2 (NGFF) form factor measuring (42.0±0.15)mm × (30.0±0.15)mm × (2.3±0.20)mm, which meets the 3GPP Release 11 standard. The EM05 can provide data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA and CDMA networks. The EM05 delivers maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The series consists of three variants to meet various geographical demands, which can be compared via the table above.A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, industrial PDA, rugged tablet PC, and digital signage.Key FeaturesSupports DFOTASupports DTMFSupports MIMOUSB 2.0 high speed interfaceMulti-constellation GNSS receiver availableEM05-CEEM05-EEM05-GREGION / OPERATORChina/Thailand/IndiaEurope/Australia/New ZealandGlobalFREQUENCY BANDSLTE-FDDB1/B3/B5/B8B1/B3/B7/B8/B20/B28B1/ B2/ B3/ B4/ B5/ B7/B8/ B12/B13/B14/ B18/ B19/B20/ B25/ B26/ B28/B66/B71LTE-TDDB38/B39/B40/B41B38/B41B38/ B39/ B40/ B41WCDMAB1/B8B1/B8B1/ B2/ B4/ B5/ B6/ B8/ B19EVDO/CDMABC0--GNSS (Optional)GPS, GLONASS, BeiDou/Compass, Galileo, QZSSGPS, GLONASS, BeiDou/Compass, Galileo, QZSSGPS, GLONASS, BDS, Galileo, QZSSDATA TRANSMISSIONLTE-FDD150Mbps (DL)/ 50Mbps (UL)150Mbps (DL)/ 50Mbps (UL)150Mbps (DL)/ 50Mbps (UL)LTE-TDD130Mbps (DL)/ 30Mbps (UL)130Mbps (DL)/ 30Mbps (UL)130Mbps (DL)/ 30Mbps (UL)DC-HSPA+42Mbps (DL)/ 5.76Mbps (UL)42Mbps (DL)/ 5.76Mbps (UL)42Mbps (DL)/ 5.76Mbps (UL)WCDMA384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)384Kbps (DL)/ 384Kbps (UL)EVDO3.1Mbps (DL)/ 1.8Mbps (UL)--1X Advanced307.2Kpbs (DL)/ 307.2Kpbs (UL)--CERTIFICATIONSREGULATORYChina: SRRC/ NAL/ CCCEurope: CE Taiwan, China: NCCSRRC/ NAL/ CCC/ GCF/ CE/ PTCRB/ FCC/ UKCA/ IC/ Anatel/ KC/ NCC/ JATE/ TELEC/ RCM/ FAC/ NBTC/ IMDA/ ICASAOTHERSWHQL/RoHS CompliantWHQL/RoHS CompliantWHQL/RoHS CompliantEM05-CEEM05-EEM05-GWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
