High Speed Efficiency Plastic Pet Injection Molding Machine Preform Making Machines

Product Description

High Speed Plastic Tableware Disposable Knife Fork Spoon Injection Molding Machine
Product Parameters

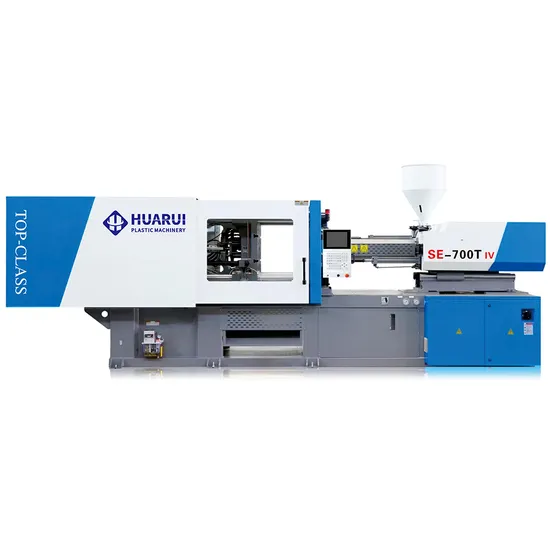

SE-700T IV Plastic Injection Molding Machine Information
Item		Unit		A	B		C	D
Screw diameter		mm		90	95		105	110
Theoretical shot volume		cm³		3022	3367		4113	4514
Shot weight (PS)		g		2750	3064		3743	4108
Shot weight (PS)		oz		97	108.1		132	144.9
Length/Diameter ratio		L/D		23.2	22		19.9	19
Injection pressure		Bar		1896	1702		1393	1269
Injection rate		cm³/sec		693	772		943	1035
Max.screw speed		rpm		130
Clamping force		KN		7000
Max.daylight		mm		1410*1360
Open stroke		mm		960
Space Between Tie-bars		mm		970*920
Min mould dimension		mm		400
Mould thickness range		mm		970
Ejector force		KN		160
Ejector stroke		mm		250
No.of ejector pins		unit		17
Max.motor power		KW		36+55
System pressure		MPa		175
Heater input power		KW		55
Oil filling capacity		L		800
Machine size		M		10.6*2.3*3.2
Net weight		KG		32000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
