US$80,000.00-128,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Item
CNC Deep Hole Drilling Machine
Workbench Size
L1400mm X W700mm
Max. Drilling Depth
380mm
Drill Hole Inner Diameter
Dia.1.5~25mm
Spindle Specifications
Bt50
X-Axis Displacement
1200mm
Z-Axis / Z2-Axis Displacement
480/480mm
Transport Package
Standard Exporting Package
Specification
3300x4200x3300mm
Production Capacity
500 Sets/ Year
Product Description

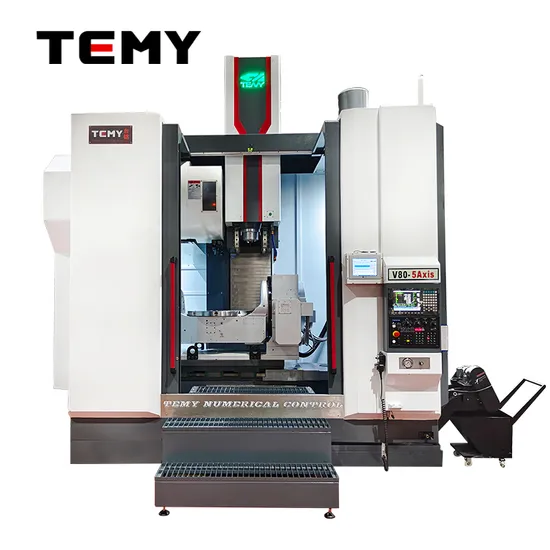

Vertical Cradle 5-axis deep hole drilling machine
Model: U8-5Axis
Based on the four-axis vertical deep-hole drill, this machine is equipped with high-performance intelligent tool library and telescopic guide sleeve base through scientific and technological innovation. It can perfectly realize the functions of automatic gun drill and guide sleeve, greatly improving the processing efficiency and saving invalid time. Intelligent tool library can be loaded with gun drill, milling cutter, twist drill, U drill, tapping, guide sleeve and other tool accessories, which provides powerful support for diversified processing. It can switch freely in drilling, milling and tapping processes. It is suitable for the processing of various complex parts, such as automotive parts, medical equipment, die manufacturing, etc. The field has been widely used.
Parameter:
| ITEM | UNIT | U8-5Axis |
| Machining capacity | | |
| Drill hole inner diameter | mm | Φ1.5~Φ25 |
| Max. drilling depth | mm | 350 |
| Machining stroke | | |
| X-axis displacement | mm | 1200 |
| Y-axis displacement | mm | 700 |
| Z-axis / Z2-axis displacement | mm | 480/480 |
| Workbench | | |
| Size (L × W) | mm | 1400*700 |
| Table size | mm | Φ800 |
| Dimensions of the center positioning hole | mm | Φ220H7 |
| Total rotation ratio | | 1:180 |
| Gear ratio of rotating worm pair | | 1:180 |
| Tilting total gear ratio | | 1:180 |
| Maximum operating oil pressure | MPa | 1.5 |
| Indexing accuracy of rotary shaft | | 15″ |
| Rotational shaft repetition accuracy | | 5″ |
| Indexing accuracy of tilting shaft | | 60″ |
| Repeatable accuracy of tilting shaft | | 8″ |
| Maximum speed of table | r/min | 11.1 |
| Set the minimum division unit | | 0.001 |
| Table tilt range | | -110°~110° |
| Table level bearing | kg | 900 |
| Table tilt bearing | kg | 600 |
| Speed and Main Spindle | | |
| Spindle taper hole | | BT50 |
| Max. spindle speed | rpm/min | 12000 |
| Feed rate | mm/min | 1~300 |
| Syslem | | |
| Control system | / | SYNTEC/FANUC |
| Tool magazine | | |
| Tool magazine | / | BT50 Disc tool library /16 bit automatic tool change |
| Guide sleeve | / | BT50 disc cutter Library / 8-bit automatic guide sleeve |
| Power | | |
| Spindle motor power | KW | 7.5/11 |
| X-axis servo motor power | KW | 3.9 |
| Y-axis servo motor power | KW | 5.9 |
| Z-axis / Z2-axis servo motor power | KW | 5.9/5.9 |
| Total power | KW | 42 |
| Cooling System | | |
| Cooling tank capacity | L | 200 |
| Cutting oil cooling pressure | kg/cm² | 0-150 |
| Cutting oil flow range | L/min | 6-60 |
| Chip conveyer system | | |
| Chip conveyor | / | Standard: Magnetic chip removal machine/Optional: chain plate or spring type |
| Size & Weigh | | |
| Machine weight | kg | 11000 |
| Machine size (L × W×H) | mm | 4500*3500*4500mm |
>>
