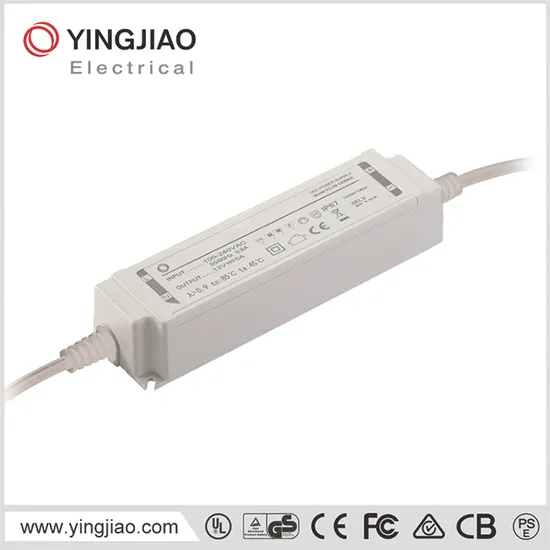

2100mA 60W Power Supply for LED Lighting

Product Description

2100mA 60W Power Supply For Led Lighting
Product Description

Model:	YCL60 constant current series
Power:	60W max.
Input:	100-240VAC 50/60Hz
Output Voltage:	12-48V
Output Current:	100MA-5000MA
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	2.5mA Max. at 264VAC input
No Load Power Consumption :	<0.5W
Protections:	Short Circuit /Over Current /Over Voltage/over temperature protection
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity:	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals:	CE ROHS EMC
EMI EMISSION:	Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11
MTBF	100000 hours minimum at full load at 25 ambient
Life:	3-5 years alternative
Dimension:	163*43*33mm
Weight:	250g
Packing:	50PCS/CTN,37.5*20.5*32cm

Details:

Model:	YCL60-0850700	YCL60-0571050	YCL60-0211400	YCL60-0282100
Rated Current:	700mA	1050mA	1400mA	2100mA
Voltage Range:	42-85V	28-57V	21-42V	14-28V
Rated Power:	60W	60W	60W	60W
Ripple & Noise(max.):	<1%	<1%	<1%	<1%
Voltage Tolerance:	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%
Efficiency:	90%	90%	90%	90%
Setup,Rise time	1 second max./40 MS max.

MORE PRODUCTS


ABOUT YINGJIAO Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.
Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.
Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.
In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements.
