LAIRD Tflex SF10 Thermal Gap Filler

Product Details

Product Description

Product Description
FEATURES AND BENEFITS
1. Silicone free formulation
2.Low peak and residual pressure
3.Excellent surface wetting for low contact resistance
4.Exceptionally low thermal resistance
5.No Fiberglass reinforcement
6.Environmentally friendly solution that meets regulatory requirements including RoHS and REACH

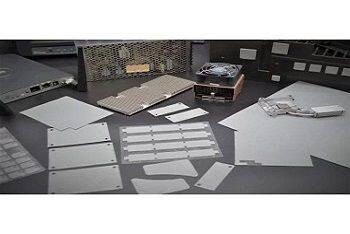

LAIRD Tflex SF10 is an innovative, high performing thermal material in Laird’s gap filler portfolio.
This silicone free material measures 10W high thermal conductivity and has excellent deflection properties which provides minimal pressure on components during deflection.
Very little pressure is required to reach the lowest possible thermal resistance.
AVAILABILITY
• 0.5 mm (0.020”) to 4.0 mm (0.160”) thick material available in 0.25mm (0.010”) increments
• Available in standard sheet sizes of 9” x 9” or custom converted die cut parts
• DF material available to remove tack from one side
• A1 material to add adhesive to one side
PART NUMBER SYSTEM
Tflex indicates Laird elastomeric thermal gap filler product line. SF10 is a silicone free 10 W/mk material. Thickness of the sheet in mm is listed after the material name.
EXAMPLES: • Tflex SF10,1.00 = 1.00mm thick Tflex SF10 material • Tflex SF10DF,1.00 = 1.00mm thick Tflex SF10 material with only one side tacky

---
