Product Description
Product Description

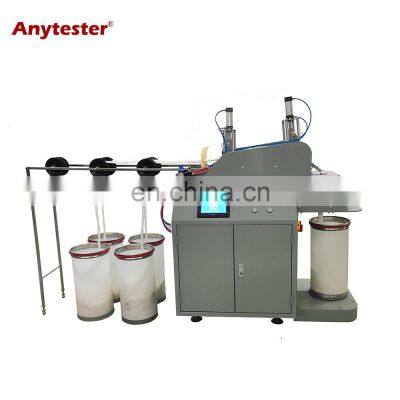

Product DescriptionAT204M Laboratory Gilling Machine is one of the most important equipment of long fiber processing system (such as worsted spinning system). In the long fiber spinning system, as the roller carding machine output sliver fiber straight parallelness and evenness does not meet the requirements of spinning, and some fiber still exist "Hook", can't be directly spinning. Especially in the worsted spinning system, if directly use such sliver on combing machine, easy to cause fiber damage, comb needle damage and the production rate reduce. In order to improve the combing process, the gilling machine is frequently used in the former spinning process. Generally, 2 to 3 gilling box are used before the combing, so that the fiber can be parallel to the straight. After combing, 2-4 gilling box are used, it's for improve the uniformity of the sliver. The main task of the needle comb process (gilling machine) is to improve the uniformity of the middle and long fiber in the sliver by the combination of multiple roots and drafts. Moreover, it is used to furtherly improve the parallelness and the degree of separation of the fibers by needle comb and to eliminate the hooks and curl in the same time. It repeated merging and drawing, so that fiber mixing evenly, and stabilize the yarn quality; to remove some small impurities and short hair.Detailed Images★ Touch screen display and PLC control.★ Doubling up to 8 slivers.★ Pneumatic feeding roll and output roll. ★ One needle gilling box★ Special coiling device, hard to be blocked. ★ High-efficiency invertors and motors independently control feeding roll, needle plate box, output roll and coiling device. ★ Mini-type machine, save researching cost and easy to operate and maintainSpecificationModelAT204MFiber typeWoolControl modeTouch screen & PLCNumber of needle gilling box1Draw ratio of gilling box2-5Draw ratio of color sliver1-8Fiber length80-120mmMotor power for feeding roll90WMotor power for needle plate750WMotor power for output roll90WMotor power for coiling device90WOutput speed6~30m/minCan sizeΦ250×550mmPowerAC220V 50Hz, single-phase, 1500WDimension1300mm×800mm×1750mm (L×W×H)Weight500KgPacking DetailsPackagingSize(cm)130(L) * 80 (W) * 175 (D)Weight 500KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
>>
