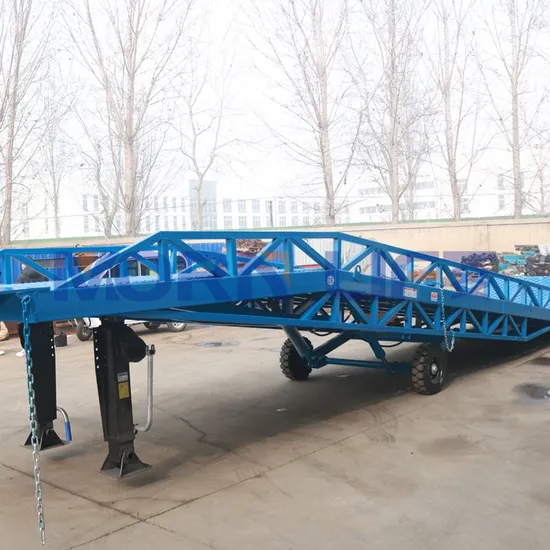

10 T Mobile Hydraulic Dock Yard Container Loading Ramp

Product Description

1. Introduction
1. Mobile Hydraulic Dock Ramp is a special auxiliary equipment for loading and
unloading of goods rapidly.

2. Its height adjustment feature allows forklifts and other moving vehicles to enter into
the truck directly and handle the goods.

3. The dock ramp is mobile and controlled by manual hydraulic system, so only one
person could operate it conveniently. It enables you to reduce the amount of labor and
raise working efficiency.
2. Model list

Model	Load (T)	Working height (m)	Working grade	Dimensions(m)	Driving force
MDR-5	5	1.0 ~ 1.7	≤13°	11*2.08*1.3	Manual or electric
MDR-6	6	1.0 ~ 1.7	≤13°	11*2.08*1.3	Manual or electric
MDR-8	8	1.0 ~ 1.7	≤13°	11*2.08*1.3	Manual or electric
MDR-10	10	1.0 ~ 1.7	≤13°	11*2.08*1.3	Manual or electric
MDR-12	12	1.0 ~ 1.7	≤13°	11*2.08*1.3	Manual or electric
MDR-15	15	1.0 ~ 1.7	≤13°	11*2.08*1.3	Manual or electric

3. Hydraulic system
(1) With handle pump, screw the return valve clockwise.
(2) Move the handle stick, to lift the ramp slowly.
(3) When the return valve is screwed counterclockwise, the hydraulic oil will go back,
and the ramp will fall down on its own weight.
4. Safety
(1)Super antiskid corrugation grid.
The platforms Mobile Yard Ramps adopt special super antiskid corrugation grids. Which
are provided with reliable strength to avoid deforming permanently. The corrugation
gridstructure of the yard ramps enhances the antiskid property to provide forklifts with
better climbing capacity and operate ability. It can be used normally even in rain or snow.

(2) Adjustable safe pedestals
Adjustable safe pedestals to prevent forklift from turning over with the yard ramp laid at
the end of a vehicle, when a loaded forklift rises to the end of the vehicle, the weight at
the end of vehicle way cause it turning over.
The heights of pedestals can be adjusted according to the weight of vehicle so as to be
used by different vehicles.
5. Application
The loading ramp is widely used in the warehousing logistics base for frequently load
and unload goods, including the factory,warehouses with a variety of vehicle models,
stations, terminals and other places

6. Detailed parts
7. Structure Drawing

8. After sales
1. User-friendly English manual for machine installation using and maintenance
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during
warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend
and holiday, engineers are available to your country if necessary.

9. Note
1. Reply your inquiry in 24 working hours
2. Customized design is available,OEM are welcomed
3. Delivery the goods to our customer all over the world with speed and precision
4. Offer customer the lowest price with high quality lifting machine

---
