Product Features 1.Supports configuration modes of Base, Medium, and 80-bit via the Camera Link interface.
2.Supports TDI function to select different image modes.
3.Supports exposure time and gain adjustment, PRNUC correction, LUT, Gamma correction, etc.
4.Compatible with Camera Link Protocol and GenlCam Standard. Products Description Sensor response curve Specifications

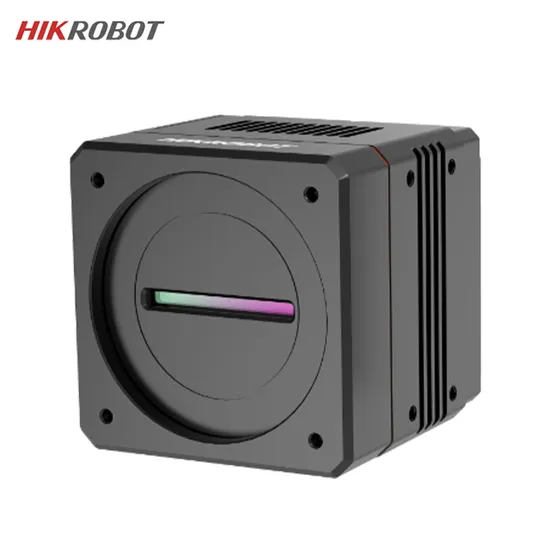

| Model | Product Model | MV-CL086-91CC-PRO |
| Type | 8K pro Camera Link linescan Camera,5μm,Color |
| Performance | Sensor type | CMOS |
| Pixel size | 5 μm |
| Resolution | 8192 × 12 |
| Image mode | Supports 1-line, 2-TDI, and 4-TDI |
| Max. line rate | 10 kHz (Base), 20 kHz (Medium), 34 kHz (80-bit) |
| Configuration mode | Base, Medium, 80-bit |
| Tap geometry | 1 ×, 1 × 2, 1 × 4, 1 × 8, 1 × 10 |
| Tap number | 1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Dynamic range | 62 dB |
| SNR | 42 dB |
| Gain | Supports 1.2 ×, 2.7 ×, and 4.6 × |
| Exposure time | 3 μs to 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure |
| Mono/color | Color |
| Pixel format | RGB, Mono 8/10 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Electrical feature | Data interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power supply | 24 VDC |
| Power consumption | Typ. 20.5 W@24 VDC |
| Mechanical | Lens mount | M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter |
| Dimension | 84 mm × 84 mm × 89 mm (3.3" × 3.3" × 3.5") |
| Weight | Approx. 883 g (1.9 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: -20 °C to 60 °C (-4 °F to 140 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) |
| Humidity | 5% to 90% RH, non-condensing |
| General | Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | 32/64-bit Windows 7/10 |
| Compatibility | Camera Link V2.0, GenICam |
| Certification | CE, RoHS, KC |
