RF Coaxial Cable Rg178 CE RoHS Approved Factory Price FEP Jacket

Product Description

Product Description Feature

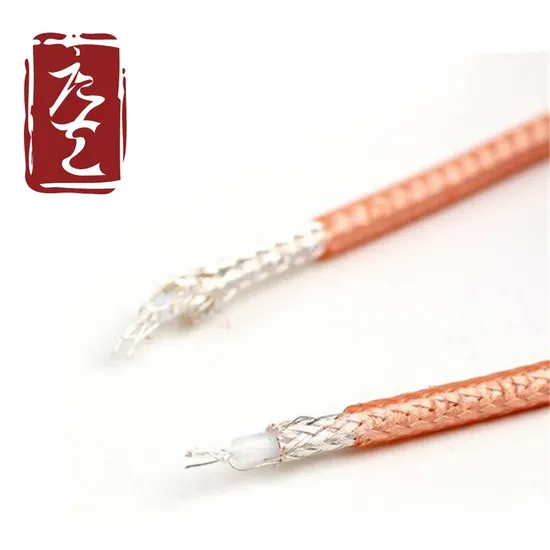

RG178 is 50 ohm with high level coverage of Single Braid Shielded. Single shield and suitable for high-quality applications at higher temperatures. It is one of the most popular thin RF coaxial cable for RF signal transmission.
Application
RG178 coaxial cable was used in mobile phones, home applications, video, audio, security, Metro logy, internal cables, Broadband communications and medical equipment.

Technical Data

RG178 Construction
Item	Structure	Material	Color
Inner conductor	7/0.10mm	Silver covered copper	Sliver
Insulation	0.86±0.10mm	PTFE	White
Wire braid	48*0.10mm	Silver covered copper	Sliver
Jacket	1.80±0.10mm	FEP	Light brown

RG178 Electrical Characteristic
Item		Unit	Value
Capacitance		pF/m	100±5
Impedance		Ω	50
Velocity ratio		%	70
Bent radius		mm	10
Max voltage		VMS	750
Max Frequency		MHz	3000
Temperature scope		ºC	-40~+200
Attenuation constant at 20ºC (Max.)	100MHz	dB/100m	52.6
	200MHz	dB/100m	85.1
	400MHz	dB/100m	118.8
	1000MHz	dB/100m	190.7
	1500MHz	dB/100m	225.2
	2000MHz	dB/100m	270.8
	3000MHz	dB/100m	340.4

Packing Detial
100m/200m/300m Roll
100m/200m/300m/500m Plastic Spool
Customized packing are welcomed!
FAQ 1. What' s our main product?
Tangyi Industrial Co.,Ltd. dedicated to the developing, production, marketing of the Coaxial cable, Fiber Optic Cable. Indoor/ Outdoor Patch Cord, Communication cable, and so on.
2. Do you provide samples? Is it free or extra?
Some of low value samples can be free for you, but you need pay for the express cost.
3. Can i negotiate the prices?
Yes, we may consider discounts for multiple container load of mixed goods.
4. Can you produce according to the samples?
Yes,we can produce by your samples or technical data.
5. How can i get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.
6. Do you provide OEM service?
Yes, We supply OEM&ODM service.we can print your logo or label on the products or on the box.
7. Why choose us?
Our company has more than 10 years experience of manufacturing of coaxial cable, optical communication units and doing network system integration system,we have our own production factory and stable raw material suppliers of many years cooperation. So our products have very stable quality and competitive price.
8. How much will the shipping charges be?
It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
9. Shipping& Delivery
For large orders:by sea(LCL or FCL)
For small orders:by sea(LCL), by air or by courier services, any of which is optional.
10. I haven't bought anything from China. Can I buy it?
We cooperate with shipping companies. Our company has a professional transportation and delivery team. Our colleagues will help you and finally let you receive your goods smoothly.
If you can' t find the products from our web, pls send the inquiry to us, even if we can' t produce them, we know china market very well, so maybe we can tell you where you can buy the products you need or we buy it for you without any profit for us !

---
