| item | value |
| Model Number | ZD-MPBA-4449-24-2NF |

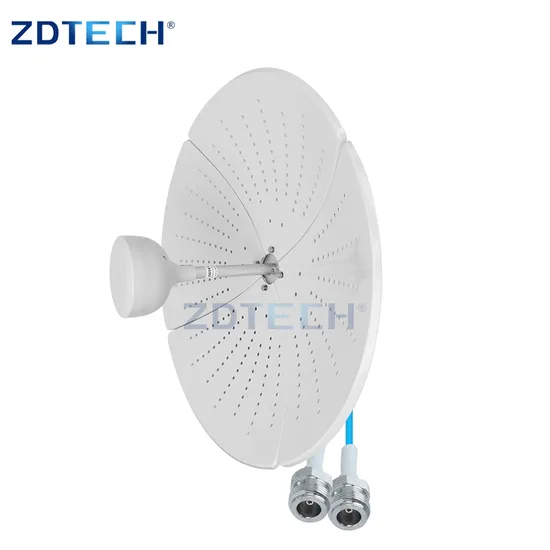

| Type | dish antenna |
| Place of Origin | guangdong |
| Brand Name | ZD |
| Frequency Range | 4400-4900MHz |
| Connector type | N-Female*2 |
| Gain | 24dBi*2 |
| Bandwidth | 500MHz |
| Horizontal lobe width | 11° |
| Vertical surface lobe width | 15° |
| VSWR | <=1.8 |
| Nominal Impedance | 50Ω |
| Polarization | Vertical+Horizontal/Vertical+Horizontal |
| Maximum Power | 100W |
| Dimensions | Φ0.9m |
| Weight | 8kg |
| Front/Back Ratio | ≥31dB |
| Rated Wind Velocity wind strength | 60m/s |
| Support Rod Diameter/Mounting | Φ35-50mm |
