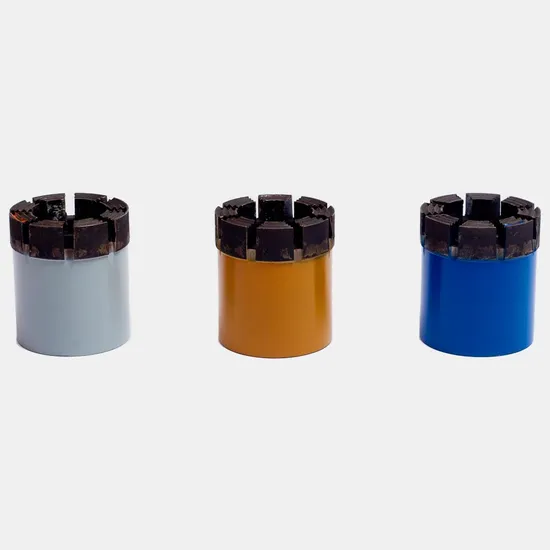

High-Performance Nq Hq Diamond Core Turbo Drill Bits for Tough Materials

US$40.00 1 Piece (MOQ)

Basic Info.

Model NO.
Impregnated Diamond Core bit
Certification
ISO9001
Customized
Customized
Length
Taper-Length
Material
Tungsten Carbide
Standard
ISO9001
Transport Package
Standard Export Packing
Specification
AQ BQ NQ HQ PQ TC
Trademark
Richdrill
Origin
China
HS Code
73045100
Production Capacity
50000 PCS Per Month

Product Description

Product Description
AVAILABLE SIZE
Q Series AQ, BQ, NQ, NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK, Geobors
T2 Series T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 Series T6 76, T6 86, T6 101, T6 116, T6 131, T6 146,
T6S Series T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
T Series T36, T46, T56, T66, T76, T86
Z Series Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series HWF, PWF, SWF, UWF, ZWF
WT Series RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)
WG Series EWG, AWG, BWG, NWG, HWG ( Single Tube , Double Tube )
WM Series EWM, AWM, BWM, NWM, HWM
Others NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TT56, TB56, TS116, CHD101
Chinese Standard 56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Customised Others
Product Parameters
Model Drill Bit Reaming Shell
O.D. (mm) I.D. (mm) O.D. (mm)
BTW 59.56 42.1 59.95
NTW 75.31 56.1 75.7
HTW 95.57 71.1 96.09
AQ 47.63 26.97 48.01
BQ 59.56 36.4 59.95
BQ3 59.56 33.53 59.95
NQ 75.31 47.63 75.7
NQ3 75.31 45.08 75.7
HQ 95.57 63.5 96.09
HQ3 95.57 61.11 96.09
PQ 122.05 84.96 122.65
PQ3 122.05 83.06 122.65
