High Safety Dispatch Winches Multifunctional Machinery And Equipment

Product Description

Product Description
Introduction of High Safety Dispatch Winches Multifunctional Machinery And Equipment JD Mining Dispatching Winch is mainly applicable to coalface and excavating face loading station dispatch tramcar underground coal mine, middle laneway carrying tramcar and other transportation, also it can be used for metallurgy mine and construction hoisting.
It is strictly prohibited to brake at both ends and be used in man-riding or lifting.Flameproof design is suitable for the mine within coal dust and mash gas. All electrical equipment must have the security card during a validity period. zmwm17
JD Dispatching Winch is widely used to pull the tramcar underground.The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.

Product Parameters

Parameter of High Safety Dispatch Winches Multifunctional Machinery And Equipment

Model specification		JD-1	JD-1.6	JD-2.5	JD-4
Wire rope static tension KN		10	16	25	40
Rope speed(m/s)	Min.	0.433	0.733	1.16	0.95
	Max.	1.033	1.399	1.45	1.48
	Average	0.733	1.066	1.31	1.22
Wire rope size	Wire rope Dia.(mm)	12.5	15	18.5	21.5
	Rope length(m)	400	400	500	850
Drum size (mm) (Dia.*Width)(mm)		Φ224*304	Φ310*400	Φ620*580	Φ580*600
Total reduction ratio		41	32.5	42.24	32.75
Dimension (mm)		1120*766*727	1435*1217*1255	1830*1794*1390	2200*1965*1425
Weight(with motor)(kg)		542	1370	2500	3750
Flameproof motor	Model	YBJ-11.4	YBJ-25	YBJ-40	YBK3-280M-6
	Power(KW)	11.4	25	40	55
	Turn number(r/min)	1460	1465	1470	980
	Voltage(V)	380/660	380/660	380/660	380/660

Detailed Photos

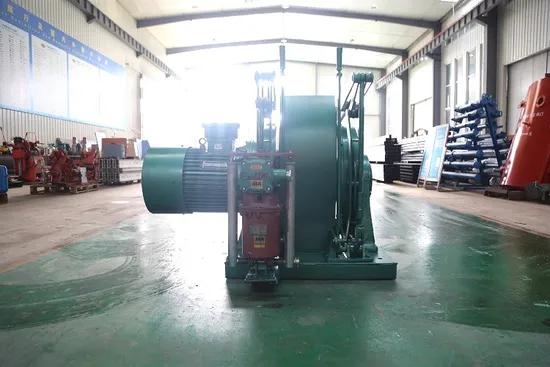

Pictures of High Safety Dispatch Winches Multifunctional Machinery And Equipment

---
