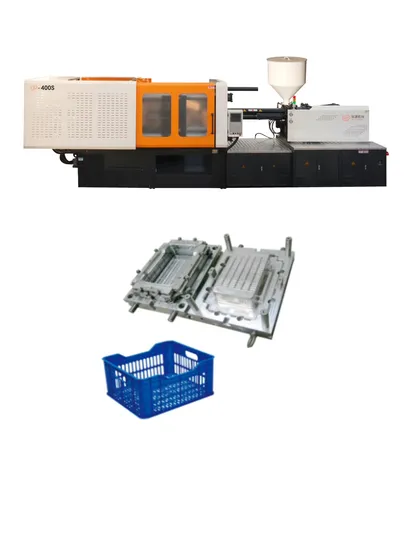

Large Volume Box Mold Injection Machine

Product Description

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
This China servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. offers advanced features for precise and efficient molding processes. Key specifications include:
Modulus of Capacitance: Ensures accurate positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar (Green column).
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Features code mold hole and slot size for consistent and reliable molding results.
Ejection Mechanism: Provides details on the ejection point position, ejector rod diameter, ejection force, and stroke for smooth mold ejection.
Mold Opening Stroke: Offers precise mold opening stroke and maximum opening distance for efficient operation.
Experience high-quality molding capabilities with this standard injection molding machine designed to meet industry standards and deliver superior results.

Technical Parameters	Model UP-420T
Injection Unit	A	B	C
Screw diameter (mm)	70	75	80
Shot Volume (cm3)	1385	1590	1810
Injection weight (g)	1247	1431	1628
injection pressure (Mpa)	199	173	152
Screw speed (rmp)	230
Clamping Unit
Clamping force (KN)	4200
Open stroke (mm)	740
Max Mold height (mm)	750
Min Mold height (mm)	280
Space between tie bars(mm)	745x745
Ejector force (KN)	110
Ejector stroke (mm)	180
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	39.7
Heating power (KW)	29
Machine dimension (M)	7.35x1.95x2.4
Machine weight (T)	15.4
Oiltank cubage (L)	650

---
