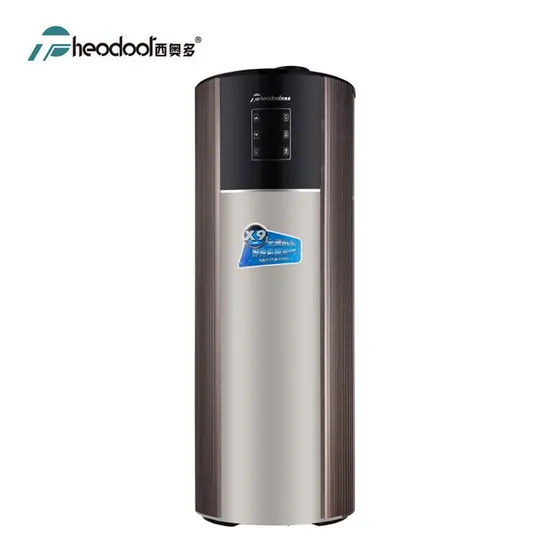

Theodoor X9 Air to Water Heat Pump by Air Source High Efficiency

Product Description

Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air, through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traditional electric water heater. X9 air source heat pump water heater,
1. All in one (monobloc) design, easy installation, Low maintenance cost.
Unit, tanks all in one design, simple engineering installation, just connect water pipes and the power to use.
2. Double energy System by air-water technology and smart auxiliary electric heater integrated technology,
to achieve a short-time, all-weather, which means that using hot water, it is comfortable to enjoy the perfect combination of energy-saving design, it can used in -7 ~ 43°C, anytime, anywhere to enjoy the hot water.
3. Microcomputer intelligent control, scree LCD,room control,automatic power-down memory,defrost function,and automatic recovery to the original opareting mode after power-on. Water temperature is set freely.
4. Temperature range is widely using All weather. Regardless of the sunny, cloudy, rainy, nights, supplying with endless hot water.
5. Maintenance and inspection is more convenient, simple operation.
6. WIFI connection.
Brief specifications:

Model	RS-3.6FAD/150L	RS-3.6FAD/190L	RS-3.6FAD/260L	RS-3.6FAD/300L	RS-4.2FAD/260L	RS-4.2FAD/300L
Rated Input Power	0.8 KW	0.8 KW	0.8 KW	0.8 KW	1.2 KW	1.2 KW
Rated Heating Capacity	3.0 KW	3.0 KW	3.0 KW	3.0 KW	3.6 KW	3.6 KW
Heating ampere	4.0A	4.0A	4.0A	4.0A	5.5A	5.5A
Power Supply	220V~50Hz				220V~50Hz
Outlet water temperature	55 degrees				55 degrees
Capacity of Water Tank	150L	190L	260L	300L	260L	300L
Electric Heater Power(EHP)	2KW				2KW
Auxiliary heater ampere	9.1A				9.1A
Refrigerant	R134A /R410A
Compressor	Panasonic
Condenser	External copper coil /Stainless steel coil (internal)
Evaporator	High efficiency finned heat exchanger
Size(mm)	650X1360	650X1490	650X1770	650X1900	650X1770	650X1900
Net Weight (Kg)	75	85	100	112	107	119
Noise (dB)	46	46	46	46	50	50
Water connection	3/4	3/4	3/4	3/4	3/4	3/4

Factory Production
Installation project
Company information
STAR BRAND
Guangzhou Theodoor Technology Co., Ltd. is a professional high technology enterprise, focus on R&D and manufacture energy saving products such as Air Source Heat Pump, Air Curtain etc. As one of the star brands in Heat Pump industry, Theodoor produces a variety of Heat Pumps and exports to more than 80 countries and regions.

PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and development new area-Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.

INNOVATION TECHNOLOGY
With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as heat pump long-time running laboratory. What's more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.
FAQ
Why the air source heat pump is the most energy saving water heater?
Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air, through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traditional electric water heater.
How to choose the suitable capacity?
Choose which sizes of water tank is related to the number of people using hot water, the number of bathrooms, whether there are bathtub, kitchens and other hot water consumption and so on.

---
