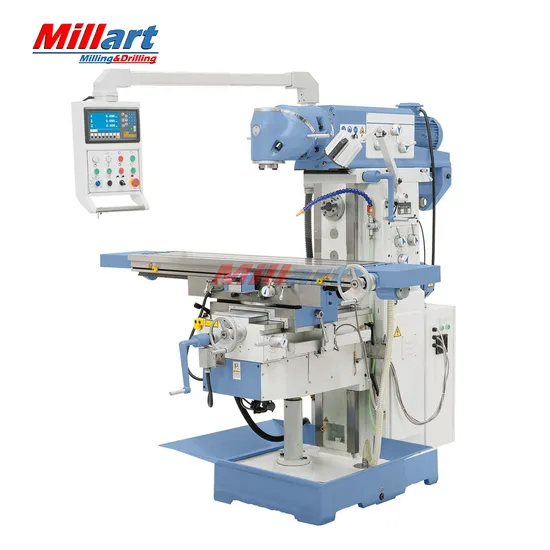

High Precision Swivel Type Universal Milling Machine XL6432 for Sale

Product Description

High Precision Swivel Type Universal Milling Machine XL6432 For Sale
Features:
Logical, clearly arranged gearshift for speed change
Hardened and polished guideways guarantees top accuracy
Setting of the required feed speed by potentiometer on the contro panel
Digital readout for x-, y- and z-axis come standard
Finely graduated feeds in all axis, driven by servomotor
Universal mill head system „Huron" adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Central lubrication in x- and y-axis comes standard Technical parameter:

Model	Unit	XL6432	XL6432C	XL6432CL
Table size	mm	1325×320		1600×320
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS040 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	245
Spindle speed range	r.p.m	12steps 60-1750 (V) 12steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2520×2100×2000
Net weight	kg	2635	2700	2750

Standard accessories:

Draw bar	Spindle brake
Coolant device	Ball screws in all axis
Coolant tray	Automatic central lubrication
LED machine light	Mill arbors
Universal mill head	Tools

Optional accessories:

3-axis digital readout	Horizontal & vertical rotary table
Mill chuck set	Clamping kit set 58-pcs
Machine vice	Universal dividing head
