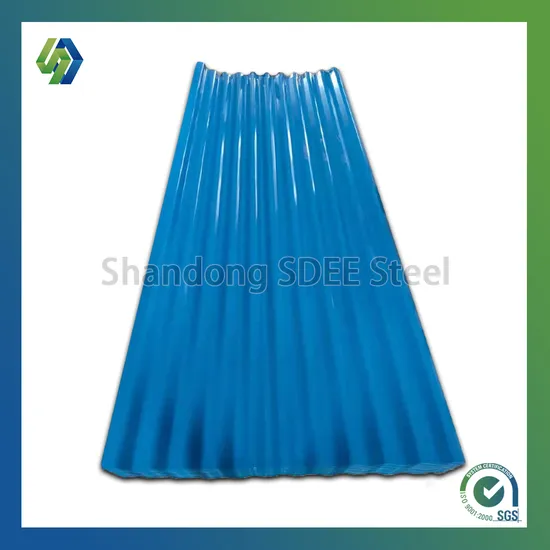

Ral Color Sheet Metal Material Roofing PPGI Roofing Prepainted Galvanized Steel for Building

Product Description

Product Description
RAL Color Sheet Metal Material Roofing PPGI Roofing Prepainted Galvanized Steel For Building
1.Thick:0.12~0.8 mm;
2.Width:660-1100 mm;
3.Material:SGCC,DX51D~DX53D,G350-G550.
4.Zinc coating:40~275G/M2.
5.Payment terms:T/T, LC,Western Union, Paypal, O/A,DP

Thickness	0.12mm-0.8mm
Width	660~1100mm
Length	1000-11800mm
Grade	DX51D+Z DX52D+Z DX53D+Z DX54D+Z DX56D+Z DX57D+Z	CS A CS B CS C FS A FS B	SGCC SGCD	SGC340 SGC400 SGC440 SGC490 SGC510	S220GD+Z S250GD+Z S280GD+Z S320GD+Z S350GD+Z S550GD+Z
Zn Coating	Z30-Z275
Color	According to RAL code
Coating Types	PE, SMP, JD, HDP, PVDF
Coating	Top Paint: 10~25 micron
	Back Paint: 5~12micron
Type of coating process	Front: Double Coated & Double Drying
	Back: Double Coated & Double Drying, Single Coated & Double Drying
Finish	High light, Glossy, Matte
Packing	Standard export package (Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons)
Application	Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings
Advantages	1.Design according to customers 'requirements 2.Production under ISO9001-2008 Quality System 3.Easy to be installed as light weight 4.Our products are recyclable materials 5.The less construction period, the more using time.6.paint your logo for free

Chemical Composition and Mechanical Properties

Steel grades	Chemical composition%						Residual Element >	Tensile strength (MPa)	Yield strength (MPa)
	C% <	Si% <	Mn% <	P% <	S% <	Alt <
SGCC, DX51D+Z	0.07	0.03	0.50	0.025	0.025	0.020	Cu<0.10 Ni<0.08 Cr<0.10 As<0.05 Sn<0.05	270-500	140-280
DX52D+Z	0.06	0.03	0.45	0.025	0.025	0.020		270-420	140-300
DX53D+Z	0.03	0.03	0.40	0.020	0.020	0.020		270-380	140-260
S220GD+Z	0.17	0.30	1.00	0.035	0.30	0.020		300-440	>220
S250GD+Z	0.17	0.30	1.00	0.035	0.30	0.020		330-470	>250
S350GD+Z	0.20	0.55	1.60	0.035	0.30	0.020		420-560	>350

Company Profile
Packaging and shipping

Package	3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock,with inner coil sleeve .
Monthly Output	10000 tons
Remarks	Insurance is all risks and accept the third party test
Loading Port	Tianjin/Qingdao/Shanghai Port

Pre-sale Service
Samples are available.
More than 10 years of design, manufacture, and sales experience.
Convenient delivery and short delivery time.
OEM & ODM orders are accepted.
Any type of logo printing or design is available.
Customer Service
We will choose the most convenient way of transportation for you.
We will check the sea freight and notify you immediately.
Quality inspection report will be sent to you after payment.
Relevant shipping information will be updated instantly until cargo reaches you.

---
