High-Performance Plastic Sliding Friction Wear Testing Equipment for Laboratories

Product Description

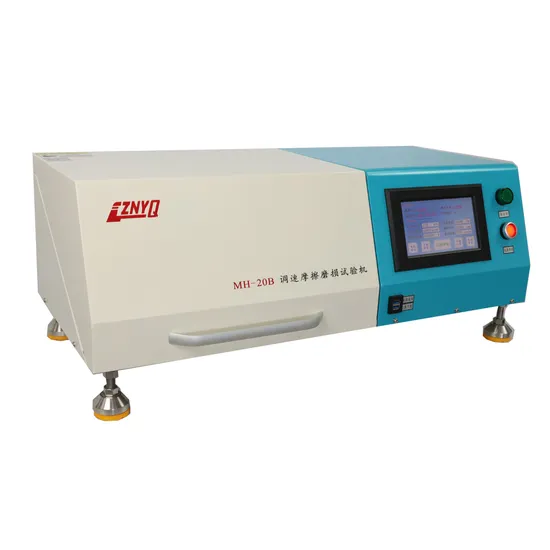

Product Description Plastic slide friction and wear testing machine
Scope of application:
The instrument meets the standard <GB3960-2016 Plastic-Test method for friction and wear by sliding>.It is suitable for measuring the sliding friction and wear properties of plastics and other composite materials. Measure the friction force and friction coefficient of the sample.
The instrument adopts color crystal touch screen,data processing,micro printing.
It can connect the computer for data processing; Computer control can display: friction coefficient - time curve ;torque - time curve;
The load can be increased or decreased manually during the test.
Detailed Photos Product Parameters

Sample size	( 30+0.5 +0.1×7-0.1 -0.2×6±0.5 )mm
Rotational speed	0~300r/min ±1%(Infinitely adjustable)
Load	Max 500N±1%(Five weights.Each sample load 100N;Each weight is 2.11Kg)
Friction ring	φ40×10mm HRC40~45 chamfer0.5×45°The concentricity deviation between the outer circle surface and the inner circle is less than 0.01
Microprocessor control,data processing,micro printer

Certifications
Company Profile Changchun Intelligent Instrument Equipment Co., Ltd. is a technology-based enterprise integrating R&D, production, sales, and after-sales service. It was founded in 1989 and has a history of 35 years. We are one of the earliest companies in China to develop and produce testing machines. We specialize in the R&D and manufacturing of optomechanical and electrical integrated testing instruments, analytical instruments, and automotive parts testing instruments. We have also passed the ISO9001 international quality system certification.
Our company is a high-tech enterprise. In the process of development, the company actively adopts advanced design concepts and uses its unique design and development capabilities. According to national standards, international standards, German standards, American standards, and Japanese standards, it has developed more than ten kinds of test instruments, analytical instruments, and automotive parts testing instruments.
