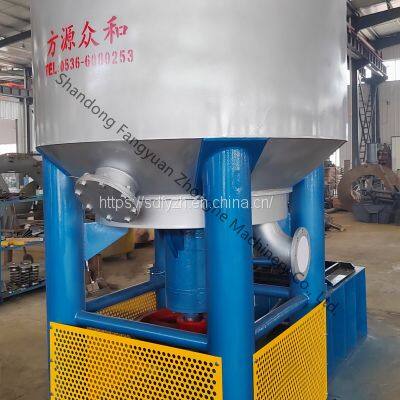

The Vertical medium consistency hydrapulper has a working concentration of 6%-12% and high pulping efficiency.
In the work, the drive shaft drives the bottom plate and the spiral rotor to rotate strongly, and the slurry moves up and down along the spiral surface of the rotor, then it is thrown from the lower part of the rotor to the groove wall, and then along the groove wall, it is again subjected to the high strength eddy circulation in the process of the force movement of the knife plate and the rotor. All kinds of waste paper, box board, and commercial pulp board are turned up and down in FZS medium and high consistency hydrapulpermachine, circumrotating round, all azimuth height is constantly impacted, and continuous friction between the blade cutting tool and spiral winch blade, the pulp is completely dissolved into fiber, and the swelling can avoid cutting and damaging the fiber. The impurities such as plastic sheets, rubber sheets, etc. are broken less, and no debris will be formed.
Model
| FZS-1
| FZS-2
| FZS-3
| FZS-5
| FZS-8
| FZS-10
| FZS-15
| FZS- 20
| FZS-25
| FZS-30
|
Nominal volume (m³)
| 1
| 2
| 3
| 5
| 8
| 10
| 15
| 20
| 25
| 30
|
Capacity (t/d)
| 3-6
| 5-11
| 9-12
| 13-18
| 20-30
| 30-45
| 45-60
| 60-80
| 90-120
| 120-150
|
Pulping concentration (%)
| 6-12
|
Power supply (kw)
| 22
| 37
| 45/55
| 55/75
| 90/110
| 110/160
| 185/220
| 220/310
| 280/360
| 410
|
Our Services
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Company Information
Shandong Fangyuan Zhonghe Machinery Co., Ltd. (formerly Zhucheng Fangyuan Machinery Co., Ltd.) is the backbone enterprise specializing in the production of environmental-friendly pulp and papermaking equipment, tissue paper machine and sewage treatment equipment. The company is next to Qingdao free trade zone Zhucheng functional area. The main products include two categories, more than 50 series, sewage treatment equipment, pulp and papermaking equipment and crescent tissue paper machine. With the high technology content, it has reached the advanced level of the same industry in China.
FAQ
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
Q2. How to install the equipment?
A: We can give you guide by video, voice, email by all kinds of chatting APP
If there's still doubt, we can arrange the professional engineer to install in your country.
Q3. How many models does the equipment have?
A: We have FZS-1, FZS-2,FZS-3, etc.
You can choose the model you need according to your parameters.
Q4. How do you pack the products?
A: Normally as the export standard or as your needs
Q5. What is your available port of shipment?
A: Qingdao port, etc.
Q6. Do you offer guarantee for the products?
A: Yes, under the right condition, we can offer time warranty for our products
>>
