Product Details
Product Description
Product Description

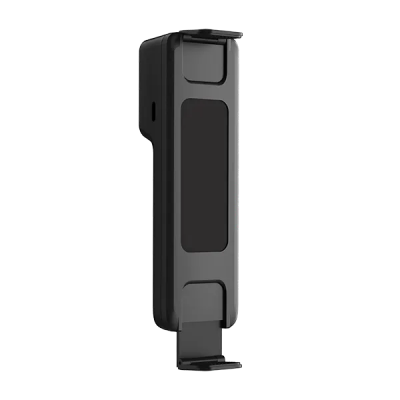

IX2 AIR Wireless Thermal Camera For Smart Devices
Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios.
It supports 8m wireless image transmission and operation.
With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.
Feature
Wireless Measurement, Unlocking New Scenarios
1. Up to 8m* wireless image transmission.
2. Image transmission delay<300ms.
3. With 2 hours of battery life, productivity is always alive.
Clear Thermal Images, Precise Temperature Measurement
Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.
40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.
Four image modes + 7 palettes, suitable for temperature observation of different targets and different scenes.
Hard-Core Configuration, Easy To Use And Convenient
IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand, weighing only 132g.
Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.
*The 8-meter image transmission distance is the test value taken when the space is without obstruction.
Specification
Thermal Imaging
| Detector TypeUncooled infrared detectorInfrared Resolution256×192Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜40mK (25°C,F1.0)Frame Rate25HzLens Focal Length3.2mmFOV56°×42°Spatial Resolution (IFOV)3.75mradFocusing ModeFixed focusMinimum Imaging Distance0.3mMeasurement Range-20°C~+150°C, 100°C~550°CMeasurement Accuracy±2ºC or ±2% of readings, whichever is greater |
|
Imaging Display
| Visible Light Camera2 megapixelsPalettes7Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAuto |
|
Measurement and Analysis
| App Analysis FunctionCentral temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames) |
|
System Functions
| Communication ProtocolWi-Fi, USB, BluetoothRemote Access and ControlConnection to smart devices via Wi-Fi, up to 8m away |
|
Others
| Battery1050mAhCharging ModeUSB Type-CBattery LifeAbout 2hTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~90% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 132g, 135.6×41×29.1mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, USB cable |
|
Application Scenarios
Power Maintenance |
HVAC Leak Detection |
Equipment Inspection |
Circuit Board Repairing |
