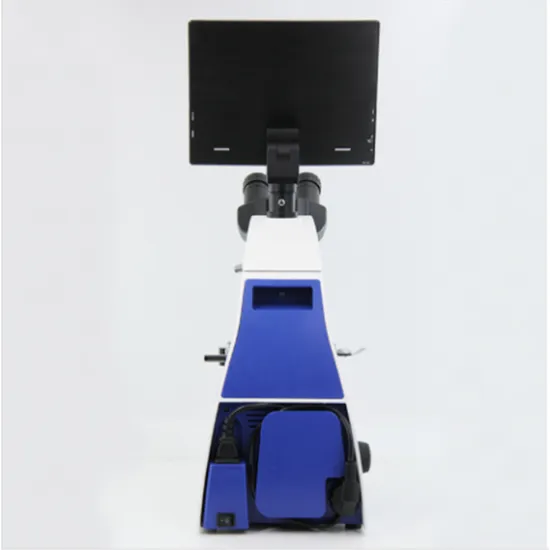

A33.1502 Microscope Resolution 9.7 LCD Digital Lab Microscope

Product Description

2022 New Arrival A33. 1502 LCD Touch Screen Digital Lab Microscope 9.7'' LCD / Android Pad / 5.0M Application: Hospital , School , Laboratory
1,9.7" LCD Touch Screen Pad, With Android System + Measuring Software
2,High Eye-pointWide Field Eyepiece WF10x/20mm Dias.30mm
3,Achromatic HC 4x,10x,40x100x Objective, Upgrade-ableTo Infinity
4,Double Layer Mechanical Stage 143*132mm, Upgrade-ableTo 216x150mm
5,3W LED Kohl-er Illumination With Removable Light House For Easy Maintenance
Product Description
Large head tube 360° freely rota-table
4 Holes nose-piece switch objective smoothly
Abbe n condenser height adjustable, with iris diaphragm
Product Parameters

Head		Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
Eyepiece		WF 10x / 20mm, Diopter Adjustable, Dias. 30mm
Objective		High Contrast Chromatic Free 4x, 10x, 40x(s), 100x(Oil, S)
Focus Knob		Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
Nosepiece		Quadruple, Backward With Click Stops

Stage		Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
Condenser		Abbe Condenser N.A.1.25, Center Adjustable
Light Source		3W LED Brightness Adjustable
Adapter		C-Mount 1.0x
Package		53*32.5*53.5cm / 11.5Kg, 1 Set/Carton

Camera		5.0M 1/2.5" CMOS Digital Camera
Resolution		2048 x 1536 @ 15FPS
Pixel		2.2 um x 2.2 um
Data Storage		TF Card or Built-in Memory
Data Output		USB 2.0, HDMI, TF Card

Photo		5.0M .JPEG
Video		1080p Video Record
System		Android 5.1 System 90 Languages Support Mouse + Keyboard Control Support WIFI Support Bluetooth
Power		DC 12V/2A Power Adaptor, AC 100~240V
Size		Pad 238x182x12mm, Camera 40x39mm
