Plastic Oil Bottle Extrusion Blow Molding Machine

Product Description

We are produce high quality BLOW MOLDING MACHINE , Provide high quality service & reasonable price for you.
Foshan Bkwell intelligent equipment co.,Ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA
BLOW MOLDING MACHINE INTRODUCTION

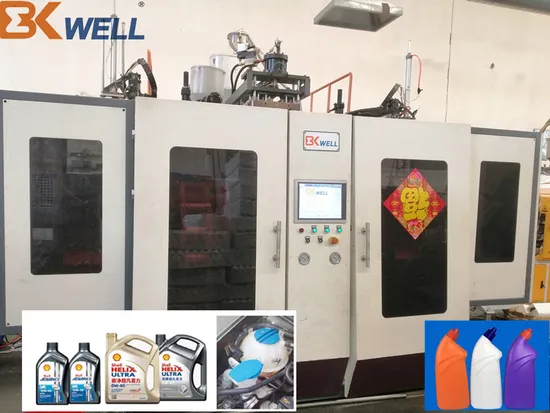

BEK-BM05D/12D/20DDouble Station Blow Molding Machine for Oil bottle,lubrication oil,Cooling water tank
We can offer complete solutions:
Mould with auto deflashing
Online labeling machine
Take out robot
conveyor
Crusher
Online leak detector
especially high speed blow molding machine use the lowest tempreture technical

Product Overview: Performance and advantages
·Optional multi-layer co-extrusion.
·Optional view strip line system.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
Technical parameters of machine

Model	Unit	BM05D	BM12D	BM20D
Max product volume	L	5	12	20
Dry cycle	Pc/h	700*2	600*2	600*2
Die head structure	Continuous type
Main screw diameter	mm	75	90	90
Max plasticizing capacity (PE)	kg/h	90	160	160
Driving motor	Kw	30	45	45
Oil pump motor power	Kw	11	15	15
Clamping force	KN	70	120	160
Space between platen	Mm	150-510	240-640	280-680
Platen size W*H	Mm	350*400	450*500	500*520
Max. mold size	Mm	360*400	500*520	560*520
Platen moving stroke	Mm	450/520	600/650	650
Heating power of die head	Kw	7.5	10	12.5
Machine dimension L*W*H	m	3.7*3.1*2.7	4.2*3.2*3.0	4.3*3.2*3.1
Machine weight	T	8.5	12	14
Total power	Kw	60	90	93

Blow moulding machine/extrusion blow molding machine samples:
Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine

parts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

seals service network
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA

Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
1. What are BEKWELL (JWELL new company in foshan china) coming from?
BEKWELL(Jwell)made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, FOSHAN, Liyang.
2. Why should I choose Jwell?
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.
3. Are U the only JWELL in MADE IN CHINA?
Right! There are many many supplier with name Jwell in MADE IN CHINA, but we are the only approval sale manager working in MADE IN CHINA. Please donot be cheated by other company in the name of JWELL screw, Jwell extruder, Jwell line, etc. They're all unhonest and untrustworthy supplier!
For more infomation about Jwell blow-molding machine, please contact :
Welcome to BEKWELL / Jwell!

---
