Thermal Concrete Mixer Tdcm125-6dB by Topmac

Product Description

Welcome to Jurong Topmac Machinery Co., Ltd., your go-to experts for all things related to concrete mixers, dumpers, block machines, concrete batching plants, vibrators, lifters, rollers, and loaders. We are thrilled to have you here and are excited to assist you with any inquiries you may have.

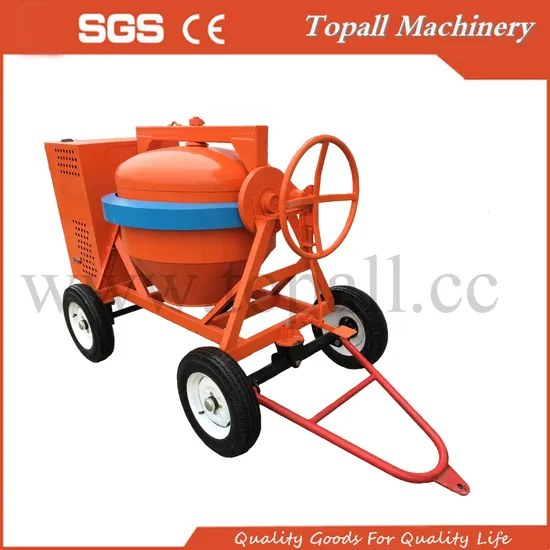

Introducing our fantastic product, the Betonniere Thermique TDCM125-6DB (HS code: 847431000). This portable concrete mixer is designed to make your construction projects a breeze. With a capacity of 125 liters (4.5 cubic feet) for discharging and 200 liters for loading, it can handle your concrete needs efficiently.
The drum volume of this mixer is an impressive 430 liters, ensuring you have enough space to mix your materials effectively. With a drum rotating speed of 22r.p.m and a capacity per hour of 3.2 m3/h, you can expect quick and consistent results.
Powered by a reliable 8HP diesel engine, this mixer is equipped with a single cylinder and water-cooled with a radiator. It also offers the flexibility of different power sources, including diesel engine, petrol engine, or electric motor, depending on your preference.
Transporting this mixer is a breeze, with a maximum towing speed of 20km/h. Its overall size of 3620*1060*1760mm and weight of 520kg make it easy to maneuver on your construction site.
The Betonniere Thermique TDCM125-6DB is built to last, with a 12-month warranty and excellent after-sales service provided by Jurong Topall Machinery Co., Ltd. Its drum volume of 430 liters allows for a maximum volume of mixed materials of 300 liters. With its four wheels, you can easily move it around your site without any hassle.
In summary, our Betonniere Thermique TDCM125-6DB is a reliable and efficient concrete mixer that will make your construction projects a breeze. With its powerful diesel engine, flexible power source options, and durable construction, it is the perfect addition to your construction equipment lineup.
Contact us today to inquire about the Betonniere Thermique TDCM125-6DB or any other products you may be interested in. We are here to help and provide you with the best solutions for your construction needs.
Exported to: Our Betonniere Thermique Tdcm125-6dB has been exported to various countries, including Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Cote d'Ivoire, Togo, Benin, Niger, Nigeria, Central Africa, Cameroon, Equatorial Guinea, Gabon, Congo, and The Democratic Republic of the Congo.
At Jurong Topall Machinery Co., Ltd., we pride ourselves on providing top-notch products and excellent customer service. With a 12-month warranty and reliable after-sales support, you can trust us to meet all your concrete mixing needs.
Don't miss out on the opportunity to enhance your construction projects with our Betonniere Thermique Tdcm125-6dB. Get in touch with us today to place your order!
Tilting Drum Concrete Mixer Model TDCM400 / TDCM500/TDCM600
Characters:
1. Hand-feed concrete mixers from 400L l/500L/600L of unmixed capacity,
2. All models capable of mixing at a rate of 25 batches/32 bathes per hour giving production output rates from 3 per hour,
3. Robustly engineered with fully enclosed drivelines, TOPMAC mixers provide safe, reliable performance and long service life,
4. Positive, heavy-duty driveline using belt driver; bevel gear and pinion.
5. Highly efficient mixing drum made of heavy duty steel,
6. Multi-position lockable drum,
7. Fast Tow trailer models available with adjustable tow bar, pneumatic tyres, mudguards and independent suspension
9. TOPALL are both accredited by ISO9001 and CE,
10. After-sales service through TOPMAC's Worldwide Distributor Network
Technical Parameters

Model type	TDCM400	TDCM500	TDCM600
Output per hour	3cbm	3.5cbm	4.5cbm
Capacity of the drum	400L	500L	600L
Dry mixing output	300L	400L	500L
Wet mixing input	220L	320L	420L
Mixing time	100S	100S	100S
Drum rotation speed	21-25 r.p.m	21-25r.p.m	21-25r.p.m
Power source	Swan R180 or Kama 178FS	Swan R180 orel or Kama 186FS
	Robin EY28 Petrol Engine	8.0hp Robin EY28Gasoline Engine/9hp Honda GX270
	3hp Siemens Electrol Motor	4hp Siemens Electrol Motor
Bearing of main transport shaft	Chinese brand bearing / NSK is optional
Operation	Manual feed	Manual feed	Manual feed
Drum thickness	3mm	4mm	4mm
Weight	250kg	520kg	650kg
Overall size	2010×1030×1600mm	3720×1060×1780mm	3720×1200×1780mm
Towing wheels	2 wheel or 4 wheel	4 wheel	4 wheel
Diameter of ring gear	800mm	900mm	900mm
Tire model	4.50-12	4.50-12	4.50-12
Container loading plan	1×40'H - 30 Units	1×40'H - 26 Units	1×40'H - 26 Units

---
