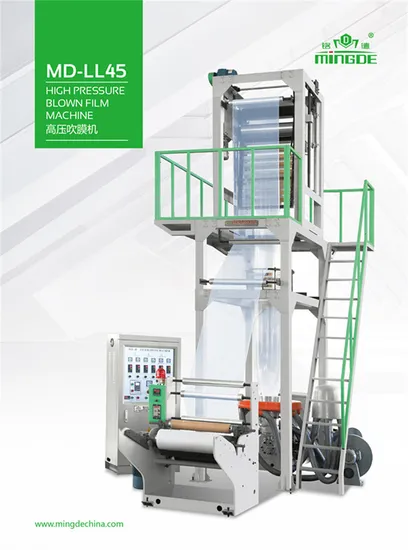

High Speed LDPE LLDPE Film Blowing Machine

Product Description

Product Description

Model	MD-LL45	MD-LL65
Suitable Material	LDPE LLDPE BIODEGRADABLE	LDPE LLDPE
Max. Film Width(mm)	600	1200
Film Thickness(mm)	0.02-0.1	0.02-0.1
Max Extrusion Output	80kg/hr	150kg/hr
Extrusion unit
Gear Box	146	200
Screw Diameter	φ45 FORCE FEEDING	φ65FORCE FEEDING
Screw L/D Ratio	30:1	30:1
Screw's Material	38 CRMOALA+PTA BIMATIC	38 CRMOALA+PTA BIMATIC
Barrel's Material	38 CRMOALA	38 CRMOALA
Barrel's Colling Fan	200W*3	200W*4
Driving Motor(kw)	15	37
Heating Motor(kw)	14.5	25
Die Size(mm)	120	300 ROTARY
Screen Changer	Standard Manual	Standard Manual
Thermo Control (zone)	6	8
Air Ring	Dual air ring	Dual air ring
Cooling Blower(kw)	3.7kw cast aluminum fan with inverter	7.5kw cast aluminum fan with inverter
Take-Up unit
Roller Width(mm)	φ138*650	φ138*1300
Embossing Roller Width	600mm	1200mm
Take-UP Motor (kw)	0.75	1.5
Take-UP Speed(M/min)	10-80	10-60
Winding Unit
Type of Winder	Single Winder	Single Full Automatic Winder
Roller Width(mm)	700	1300
Winding Motor	10N.M	1.5KW
Winding Speed(M/min)	10-80	10-60
Voltage	380V/50HZ/3PHASE	380V/50HZ/3PHASE
Cover Dimensins(m)	5*2.05*4.8	6.5*3.2*6.5

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.
FAQ
1.Trade company or manufacture?
we are a manufacture of plastic machinery such as: film blowing machine, printing machine ,bag making machine and recycling machine.
2.How to visit our factory?
Some lines you can choose. First, you can come to guangzhou air port, then by air to wenzhou air port, call us we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train Ruian station then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine parts broken because the quality problem, we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operation.
we also can send engineer to your factory ,teach your workers how to run the machine. but you need pay all the fees including: round tickets , food and living.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the plastic packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.

---
