Fresadora Factory Fanuc CNC Control Metal Working Processing Vertical Machine Tools Machining Center Vmc1160 3 4 5 Axis Arbor CNC Vertical Milling Machine

Product Description

Product Description

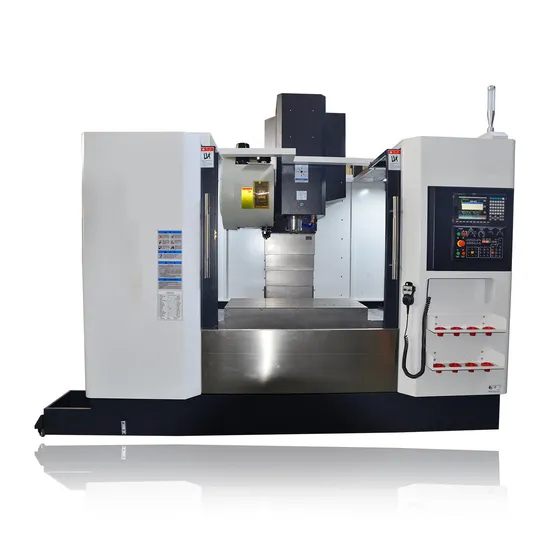

CNC Control Vertical Milling Machine VMC1160 4 Axis CNC Vertical Machining Center

we are the most professinal in making vertical machining center
Product Parameters
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail,may satisfy the customer the speed, the precision high request.
3 .Taiwan-made spindle Unit,8000-12000rpm available
4. Taiwan OKADA 24 ATC
5.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSK is suitable for producing metal product and parts in all shapes.
Features:
High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional
Standard configuration
System:KND-1000M
16 Armless Tool Magazine
3 axis linear rail
Optional configuration:
System: SYNTEC,SIEMENS,FANUC
24 Arm Tool Magazine
The 4th axis
Spindle oil cooling
Chip conveyor
Oil-water separator
12000rpm spindle unit

Main technical specifications	Specifications	Units	VMC1160
	Table size	mm	1200×600
	X axis travel	mm	1100
	Y axis travel	mm	600
	Z axis travel	mm	600
	Max. worktable load	kg	1000
	T slot(number-width-pitch)		5-18x100
	Max. spindle speed	kg	8000rpm
	Spindle taper	mm	BT40
	Main motor power	kw	11
	X/Y/Z rapid traverse speed	m/min	24/24/24
			(Optional:48/48/36 )
	Cutting feed speed	mm/min	1-10000
	Guide rail type		Linear rail
	Distance from spindle center to column surface	mm	600
	Distance from spindle nose to table surface	mm	120-720
	Positioning accuracy X/Y/Z	mm	0.0075
	Repeated positioning accuracyX/Y/Z	mm	0.005
	Tools magazine		Arm 24
	Max. tool diameter	mm	φ78( Adjacent)/ φ120(Apart)
	Max.tool weight	kg	8
	Max.tool length	mm	300
	Machine weight	kg	7300
	Overall dimension	mm	2550*3200*2650

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
