Gpy Rock and Stone Crushing Cone Crusher Equipment

Product Description

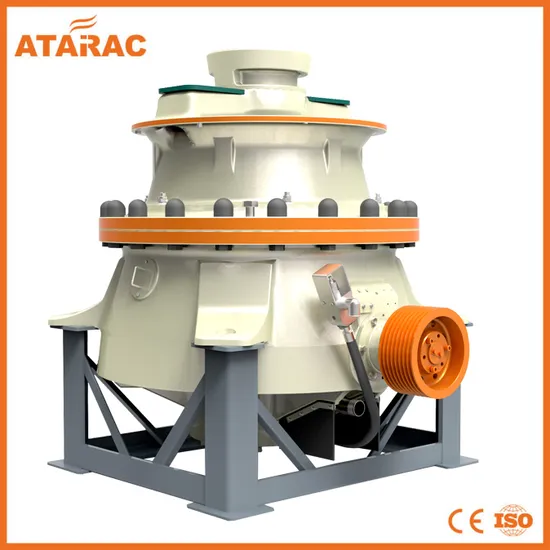

GPY series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It targets at high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. GPY cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate arc gear transmission system. Combined with multi options of crushing chamber and with PLC automatic control system, the GPY cone crusher could fully play its performance and advantages. It is widely used for the fine and coarse crushing of various kind of stones and minerals, which features in high crushing efficiency, and could meets different crushing requirement for our clients.
Our Advantages
High production efficiency
Scientifically design of crushing chamber, large eccentricity, high swing frequency, lamination crushing and hydraulic controlled constant crushing force ensures more stable operation, bigger passing capacity, higher production efficiency and better products shape, as well as reducing the power consumption to the least. High automation
PLC automatic control system can realize the functions of overload protection, tramp iron protection, discharge opening adjustment, chamber cleaning, as well as monitor oil temperature, pressure and flow, machine loading, discharge opening size, etc. so as to ensure the stable running of the machine. High load capacity
Enhanced main frame, main shaft adopting freely supported beam structure, hydrodynamic lubrication designed copper sleeve, as well as sensitive and reliable overload protection system ensures the long and smooth running of the machine even in extremely harsh working condition. Wide adaptability
GPY cone crusher has two types: course crushing and fine crushing. Each type has various kinds of optional crushing chambers. By adjusting the eccentricity, it could adapt to different processing flow and working condition. By adjusting the rotational speed of transmission shaft, it could adjust the grading of finished products, so as to maximum the machine's value Low running noise and vibration
High accuracy of arc gear transmission structure features in lower running noise, higher transmission efficiency, and durable in use. Lower vibration of main machine itself and flexible supporting with overall steel frame minimize the vibration to the least, so as to reduce the cost of foundation Lower installation cost
GPY 200(S) and 300(S) cone crusher uses Compound Cup Type piston design, which reduced installation height. Besides, the overall steel base frame makes the installation more easy and time-saving to reduce the cost Lower operation cost
Special designed crushing chamber, mantle, concave ring and material ensures higher utilization ratio and durable of liners, lower operation cost and minimized downtime. The positive pressure anti-dust system equipped on the machine ensures the clean of lubrication system. No extra grease seal and labor maintenance needed during operation. Most parts can be assembled and disassembled on the upper and lateral side, which makes the machine maintenance more labor-saving and time-saving
Product Parameters
Technical Specification(GPY100,GPY200,GPY300)

Model	ECC. mm	Feed opening(mm)		Power kw	CSS(mm)/ Throughput Capacity(t/h)
		C	EC		25mm	30mm	35mm	40mm	45mm
GPY100S	20	250		90	115-125	140-150	155-175	165-195	180-210
	25					180-190	195-215	205-225
GPY200S	25		330	160		165-215	185-235	205-255	225-275
	32						225-275	265-315	275-345
GPY300S	32		380	250			350-390	270-410	390-430
	40							440-490	470-520

Note: C= Coarse, EC= Extra Coarse

Technical Parameters(GPY100,GPY200,GPY300)

Model	ECC. mm	Feed opening(mm)						Power kw	CSS(mm)/ Throughput Capacity(t/h)
		EF	F	MF	M	C	EC		8mm	10mm	15mm	20mm	25mm	30mm	35mm
GPY100	20	40	50	100	130		150	90	45-50	45-55	65-75	90-100
	25									50-60	70-85	100-115
GPY200	25		70		130		210	160		85-105	105-125	125-150	155-175	180-205
	32										135-155	165-185	185-215
GPY300	32		60	100	130	180	260	250	100-200	110-140	155-185	185-215	220-250	255-285	290-320
	40									140-160	195-225	235-265	280-310	315-345

Note: EF= Extra Fine, F= Fine, MF= Medium Fine, M= Medium, C= Coarse, EC= Extra Coarse

Technical Parameters(GPY500S,GPY700,GPY1000)

Model	Power (kw)	Chamber Type	Max. Feed Size(mm)	CSS(mm)/ Throughput Capacity(t/h)
				41	44	48	51	54	60	64	70	76	83
GPY500S	315	EC	560	349	368-460	392-588	410-718	428-856	465-929	489-978	525-1050	562-983	604

Technical Parameters(GPY500,GPY800,GPY1000)

Model	Power (kw)	Chamber Type	Feed opening (mm)	CSS(mm)/ Throughput Capacity(t/h)
				10 mm	13 mm	16 mm	19 mm	22 mm	25 mm	32 mm	38mm	44 mm	51mm	57mm	64mm	70mm
GPY500	315	EC	275			172	185-333	198-431	211-460	241-542	267-600	293-657	328-511
		C	215			165-185	180-362	190-475	204-505	237-580	258-638	283-507	317-353
		MC	175			157-248	170-421	181-450	193-480	220-550	244-494	268-360
		M	135			192-290	206-435	221-465	235-495	270-497	297-398
		MF	115		188	202-364	217-391	232-418	247-445	282-446	314-358
		F	85		190-300	205-323	220-347	236-371	251-395	287-396	318
		EF	65		206-288	222-311	240-293	256-290
GPY800	560	EC	300					443-584	472-844	540-963	596-1065	653-1167	720-1286	777-1388	844-1506	901-1326
		C	240				400	428-631	456-888	520-1013	576-1120	631-1227	695-1352	751-1460	815-1456	871-1281
		MC	195				375-435	401-718	427-832	487-950	540-1050	591-1150	652-1267	703-1368	764-1365	816-1201
		M	155				400-563	423-780	455-836	514-948	568-1050	623-1150	687-1266	741-1367	805-1243	860-1093
		MF	100			374-420	402-711	429-760	457-809	522-923	847-937	633-784	697
		F	90		352-390	380-650	410-700	437-747	465-795	530-907	587-852	644-713
		EF	80	275-400	300-511	323-553	347-593	371-635	395-657	450-770	498-728	546-664
GPY1000	750	EC	370						390-454	444-1304	490-1441	538-1580	593-1740	641-1878	696-2038	743-2176
		C	330					392	417-770	477-1400	527-1547	578-1695	637-1868	688-2015	747-2188	798-2137
		MC	300				337-508	360-847	384-1227	438-1400	485-1547	531-1695	586-1868	632-2015	687-2000	798-1734
		M	230			262-306	282-665	302-946	321-1101	367-1256	406-1390	445-1521	491-1676	530-1810	575-1795	715-1560
		MF	160		200	215-509	232-685	248-916	264-975	300-1120	334-1230	366-1347	404-1485	436-1602	593-1391	633-1165
		F	120		243-284	263-665	282-833	302-890	321-947	367-1080	406-1160	445-1046	491-822	530-620
		EFX	100		208-418	223-661	240-710	247-758	273-807	312-921	346-990	380-891	418-700	452-528
		EF	85	180-240	196-580	211-626	227-673	238-715	260-765	296-873	328-965	360-1058	396-1165	428-1005	465-857	497-664
		EEF	75	175-470	188-560	204-603	220-648	234-692	250-737	285-841	316-850	346-756	382-575	412
