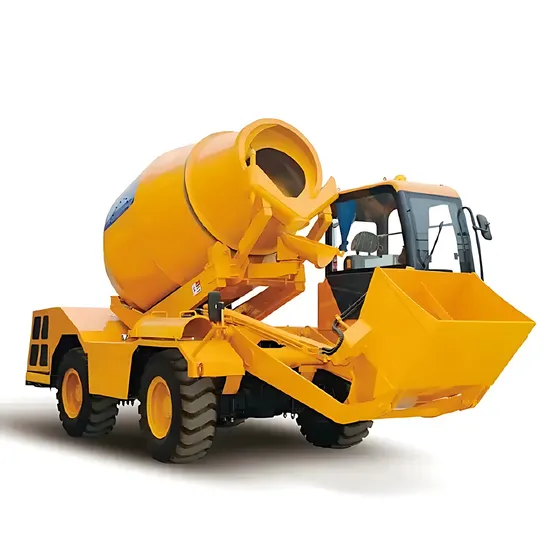

3.5m3 Self-Loading Mobile Concrete Mixer Truck Automatic Concrete Mixer Slm3500

Product Description

Product Description
Official SLM3500 Custom Made High Efficiency 3.5 m3 Self loading Concrete Mixer Truck

Concrete self loading mixer ismainly applied in the occasions where require on-site concrete mixing, such as: common road, railway construction, highway slopes (walls), dam, ditches and other water conservancy projects, as well as some infrastructure constructions with narrow space. It is especially suitable for on-site construction work in remote areas far away from concrete mixing plant. It integrates five functions, material loading, metering, mixing, transporting and material unloading, which has features of powerful functions, convenient operation and strong site adaptive capacity.
Multi-function integration Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
Hydrostatic transmission The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.
Weighing system The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
Product Parameters

Overall Parameter
Model	SLM3500
Dimension (L×W×H)	7117×2500×3331 mm
Weight (approx.)	8600 kg
Performance
Mixing Drum Capacity	Drum capacity 5.3m³,Concrete output: 3.5 m³ per batch
Mixing Speed	0-20rpm in full, infinitely variable speed change
Loading Speed	3 shovels/min, 650L/Shovel
Water Pumping Capacity	1.5 min/batch, 40 t/hour
Traveling Speed	Low Speed: 0-10km/hour / High Speed: 0-20km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4 wheel drive and 4 wheel steering
Electrical System	24V
Water Tank Capacity	2x350L
Diesel Tank Capacity	150L
Hydraulic Oil Tank Capacity	125L
Engine
Model	YC4A125Z
Manufacturer	YUCHAI
Rated Power	92 KW
Displacement	4.84 L

Detailed Photos
