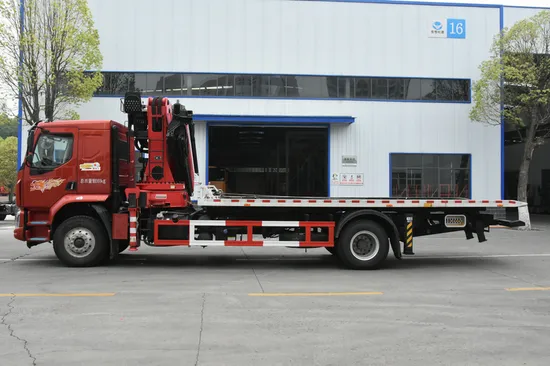

HBQZ Brand Heavy Truck Wrecker with Crane heavy duty flatbed sliding rotator tow truck towing wrecker mounted crane

Product Description

Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
Our Advantages
1). Use HG785D international standard high-strength steel to reduce the weight of the crane.2). The boom of the knuckle crane has used a hexagonal structure, reducing the lateral.3). Italian brand of balance valve, hydraulic lock, operated valve, hydraulic pump, and other core parts to ensure the micro-mobility, security, and stability.4). Parker brand oil seal and gasket for hydraulic pump.5). The brand remote control operates from Sweden.6). The factory is SGS certificated.

Detailed Photos

Product Parameters

Model #	SQ330ZB5 /knuckle crane 10.65ton at 3m
Max Liftingmoment	330Kn.m
Max Lifting Capacity	10650kg/ 3.0m
	5400kg/ 6m
	2800kg/ 9.6m
	2200kg/ 11.4m
Max Lifting Height	13.8m
Max Working Radius	11.4m
Boom Section	4 stages
Rotation Angle	360°All Rotaion
Rated Working Pressure	28mpa
Oiltank Capacity	120L
Related Oil Flow	60 L/min
Outrigger Span	2330-7100mm
Outrigger	4, adjustable, Hydraulic operating.
Crane Weight	4800kg
Installation Space	1470mm
Swingtype	Planetary gear reduction
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
Options	Aux.winch,Aux.Boom,Remote control
Material	HG785D

Truck for reference
Truck brand	Dongfeng (other truck brand can be customized)
Cabin	Driving type: 6x4, Left hand drive (Right hand drive type can be customized)
	Color is optional
Vehicle Main Dimensions	Overall size (L x W x H)	11950x2490x3850mm
	Wheel base	5850+1350 mm
	Cargo Body	8400*2300*550mm
Weight in KGS	GVW	25000 kg
	Tare weight	16250kg
	Front axle loading capacity	2 x 2500 kg
	Rear axles loading capacity	2 x27500 kg
Engine	Type	Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power	240HP (177kw)
	Max Torque	1000N.m
	Emission standard	Euro V
Max Speed	102 km/h
Gearbox	manual gearbox with 9 forwards & 1 reverses, with PTO
Tire	11.00R20 11 pieces including one spare tire
