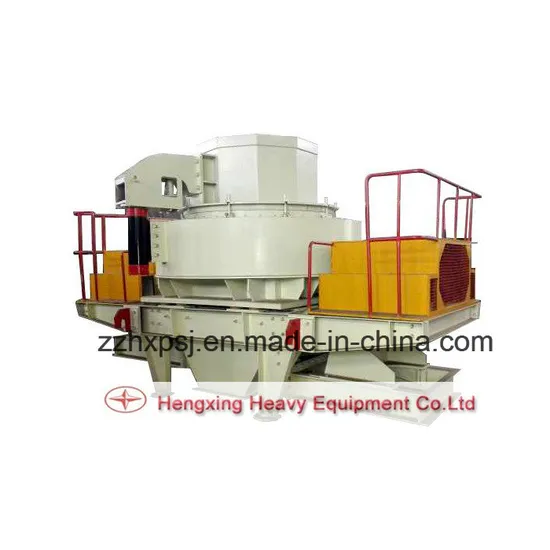

VSI 7611, VSI 8518 Vertical Shaft Impact Crusher Sand Making Machine

Product Description

VSI 7611,VSI 8518 Vertical Shaft Impact Crusher Sand Making Machine

Vertical Shaft Impact Crusher, a highly functioned equipment for sand making and shaping, is researched and produced by our corporation, absorbing advanced Germany technology and owned advanced world standards. Its performances play an irreplaceable part in various ore fine crushing equipments. The series of products combine two crushing models together and can continuously operate for 720 hours without stop. They have replaced traditional equipment such as hammer crusher, rod crushing mill and pin crusher and become the newest main equipments in sand making industries. Vertical Shaft Impact Crusher(sand maker) has two types: Rock-on-rock and rock-on-iron. Rock-on-rock type is used to crush high abrasive materials while rock-on-iron is suitable for low abrasive materials. The sand production rate of rock-on-iron is 10-20% higher than that of rock-on-rock.
Vertical shaft impact crusher Working Principle:
Material falls down to impeller cavity. Under great centrifugal force, it hits material that is flowing around the impeller as an umbel. After hitting each other, they force a vortex between impeller and shell and hit each other for several times, and finally smaller stone comes out and forms closed cycle. The required end product shape is controlled by the screen equipment.
Application Scope:
1. Artificial sand making for cobble, mountain rock(limestone, granite, basalt, diabase, andesite), ore gangue and stone chips.
2. Production for building aggregate, highway surface material, subcrust material, asphalt concrete and cement concrete aggregate.
3. Sand making production and aggregate shaping in project fields such as hydroelectric, senior road, highway, high speed railway, passenger special line, bridge, airfield runway, municipal project and high-rise building.
4. The forepart fine crushing craft of ore grinding in mine industries and material crushing in building material, metallurgy, chemical industry, mine, anti-fire material, cement and grinding material industries.
5. Suitable for environment projects such as high abrasiveness and secondary breaking, thermal power, desulphuration in metallurgical industries, steel slags and construction wastes.
6. Production for glass, quartz sand and other high purity materials.
Vertical shaft impact crusher main technical parameters:

Model			VSI7611	VSI8518	VSI9526	VSI1140	VSI1145
Capacity(t/h)	Center andRing feeding		120-180	200-260	300-380	450-520	500-600
	Center feeding		60-90	100-130	150-190	225-260	250-360
Max Feed Size (mm)	Soft material		<35	<40	<45	<50	<50
	Hard material		<30	<35	<40	<45	<45
Rotationspeed (r/min)			1700-1890	1520-1690	1360-1510	1180-1310	1100-1310
Power for doublemotor (kw)			2*55	2*90	2*132	2*200	2*220
Overall DimensionL×W×H (mm)			3600x2248x2533	4378×2350×2667	4678×2350×2667	5570×2900×3000	5100x2790x3320
Weight (t)			10	12	16	25.6	27.5
Power Source			380v 50Hz
Vibrating Sensor			Inspect scope: 0.1-20mm/s adjusted continuously
Lubrication station		Power for double oil pump	2×0.31kW
		Safety	To make sure that the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter.
		Power for oil box heater	2 kW

Vertical shaft impact crusher package and shipping :
Our service
Hengxing equipment can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
About Training
Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer's expectations. Training programs can be conducted in our workshop, or at customer's site.
About Installation and Commissioning
Hengxing equipment are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
Contact us :
Sara
Mobile phone ): 0086 137 8347 1727
website: zzhxpsj.en.made-in-china.com

---
