Woodworking Wrot Machine for Primer Door Skin/ HDF Wooden Door Laminating Board Sanding Machine Disk Sander Vibrating Type Wood Board Polishing Machine

Product Description

XINLIHUI 2017 new style doors and windows edge polishing machine
This machine is particularly suitable for various curved wood doors, frames, carved wooden products and flat wood panels, wood floor and other paint finishes, primer polishing. The machine is mainly composed of a frame, a feeding device, a lifting device, an electric appliance, an automatic control device, and a dust suction device.
Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

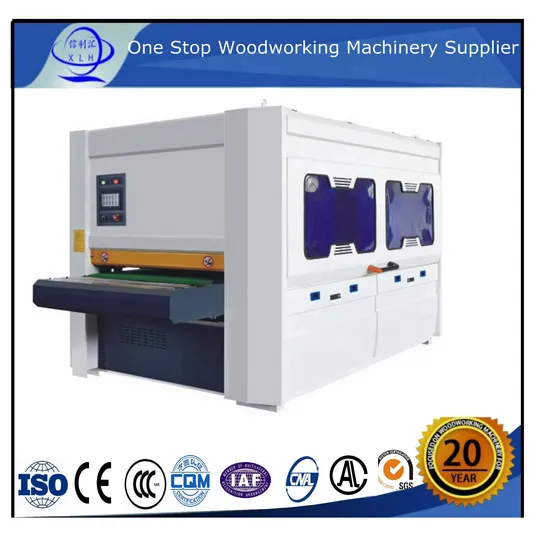

1, Product Show
2, Main Technical Parameter

Board Working width	20-1000MM
Board Working thickness	2-110MM
Board working length	>350MM
Convey belt speed	2.5-12.5 M/min Continuouslv variable Transmission
Motor total power	about 15-19 KW
Horizontal brush roller motor	2*1.1 KW frequency control
Polishing brush disk motor	2*1.1kw frequency control
Polishing brush roller motor	2*2.2 KW frequency control
Vibrating motor	4*0.25 KW
Convey belt motor	1.5KW
Working air pressure	>0.55Mpa
Suction Air Consumption Volume	>=12000CBM/Hour
Suction Air Consumption Volume speed	>=25M/S
Weight	about 3200KGS

3 Sample Show :
4, Technical Characteristics:

1.Range of use solid wood, embossed plate, carved plate, archaize floor, furniture, table board, handicraft.
2.Conveyor belt,drawing roller,polishing roller by motor,and feeding by frequency conversion.
3.Polishing roller can be easily removed or rearranged.
4.Disc brush have swing device, and each group of disc brush can independently up and down.
5.According the different board texture and model, with diffrent disc brush and polishing rollers.
8, Company Information
Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.
Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.
The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad. Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.

---
