Basic Info.
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Engine
Gasoline/Diesel/Electric
Product Name
Cocnrete Mixer
Application
Building Constrction
Keywords
Concrete Mixer 350L
Usage
Engineering Construction
Concrete Mixer Type
Sand Cement Mixing Machine
Production Capacity
1000PCS/Month
Product Description
Product Parameters
| Model | 260L | 300L | 350L | 400L | 450L | 500L | 600L | 700L | 800L |
| Concrete mixer | Drum capacity | 260L | 300L | 350L | 400L | 450L | 500L | 600L | 700L | 800L |
| Drum mouth | 450mm | 450mm | 516mm | 516mm | 516mm | 566mm | 566mm | 600mm | 600mm |
| Drum max dia | 700mm | 700mm | 800mm | 800mm | 800mm | 900mm | 900mm | 1000mm | 1000mm |
| Drum height | 687 | 777 | 766 | 851 | 936 | 920 | 1040 | 1075 | 1205 |
| Rpm | 18-25rpm |
| lower drum thickness | 4mm |
| upper drum thickness | 3mm |
| productiveness | 2-5m³/h | 2-6m³/h | 3-7m³/h | 4-8m³/h | 5-9m³/h | 6-10m³/h | 7-11m³/h | 8-12m³/h | 9-13m³/h |
| dimension | 2645*1090
*1336 | 2645*1090
*1429 | 2800*1120
*1436 | 2800*1120
*1481 | 2800*1120
*1549 | 2879*1120
*1616 | 2879*1120
*1736 | 2960*1120
*2000 | 2960*1120
*2140 |
| Engine | Diesel | 6hp | 9hp |
| gasoline | 6.5hp | 9hp |
| electric | 1.5kw | 2.2kw | 3kw |
| start system | Recoil/electric |
| Unit package | net weight | 230kg | 250kg | 260kg | 270kg | 280kg | 320kg | 330kg | 390kg | 420kg |
| gross weight | 270kg | 290kg | 300kg | 310kg | 320kg | 370kg | 380kg | 440kg | 480kg |
| package size | 1835*810
*1010 | 1830*810
*1090 | 2030*910
*1100 | 2030*910
*1175 | 2030*910
*1255 | 2070*1000
*1400 | 2070*1100
*1500 | 2110*1100
*1500 | 2110*1150
*1650 |
| container loading | 20GP | 22 | 22 | 20 | 20 | 20 | 12 | 10 | 6 | 6 |
| 40HQ | 52 | 52 | 52 | 44 | 44 | 36 | 36 | 12 | 12 |

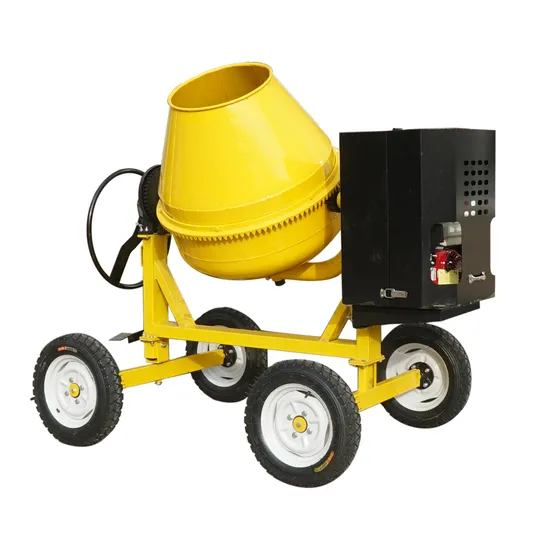

(1)CharactersPortable Concrete mixer : CM260, CM300, CM350, CM400, CM450, CM500,CM600, CM700,CM800Suitable for batching concrete/cement , mixing seed /feed ,as well as numerous industrial useSolid and durable drum constructionReinforced square tubular frame with welded steel yoke.One piece cast-iron ring gear for long lifeBelt DriveReplaceable 3-pieces blades creates different mixing patterns for a more consistent mixing .Wheel and hand brake tilting functions.Tow bar includedDifferent design or models is availableCustomer's special and necessary adjustments for mixers is acceptable Product Description
Product Application Scenarios
Packaging & Shipping
Company Profile
Certifications
FAQ
Q1: Are you a manufacturer?
A1:Yes, we have been offering specialized products in this field for 22 years.
Q2:How do you pack these products?
A2:Usually packed according to export standard or your requirement.
Q3:Is it customizable?
A3:Yes, according to your requirements.
Q4: After-sales service?
A4:24-hour technical support by phone, email.
Q5:What is your lead time?
A5:Spot goods usually take 7-10 days, and customization takes 15-25 days.
>>
