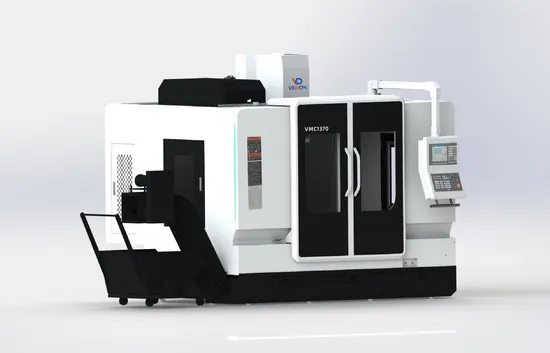

Mitsubishi/Fanuc/Siemens Controller Vmc-1370 CNC 3/4/5-Axis Vertical Machining

Product Description

Overview
Features of machining center
•Germany electric components
•Taiwan main axis
•Taiwan ball screw and lock nut
•Taiwan booster cylinder
•NSK bearing in Japan
•Tri color alarm lamp
•Automatic lubrication system
•Selection of chip conveyor
Product Parameters

Item	Unit	VMC1370	VMC1580
Capacity
X axis travel	mm	1300	1500
Y axis travel	mm	700	800
Z axis travel	mm	700	700
Spindle nose to worktable	mm	110-810	155-855
Spindle center to column	mm	750	855
Leadscrew/Guideway size
Leadscrew diameter	mm	45	50
Linear guideway width	mm	45/45/45	55/45/55
Worktable size
Worktable Length	mm	1400	1600
Worktable width	mm	700	800
T slot qty-width*distance	mm	5-18*110	7-22*110
Max loading capacity	kg	1200	1500
Spindle
Spindle speed	rpm	8000/Belt	8000/Belt
Spindle motor power	kw	15/18.5	15/18.5
Spindle torque	Nm	95.6	95.6
Spindle taper		BT40	BT40
Feeding system
Fast moving speed (X/Y/Z)	m/min	30/30/24	30/30/24
Cutting speed	mm/min	1-10000	1-10000
Feed motor power	kw	4.5/4.5/4.5	4.5/4.5/4.5
X/Y/Z Axsis motor torque	Nm	37/37/37	37/37/37
Tool Magazine
Capacity	pcs	Disc/24	Disc/24
Max tool diameter	mm	120	120
Max tool weight	kg	8	8
Max tool length	mm	300	300
Tool change time (TT)		2.33	2.33
Accuracy
Positioning accuracy	mm	0.008	0.008
Repeat accuracy	mm	0.005	0.005
Machine dimensions
Length	mm	3800	4200
Width	mm	2560	2800
Height	mm	3200	3300
Weight	kg	8500	11000

Machine Details
Taiwan CELLS/OKADA/TD/KENTURN Spindle for choose

Siemens/Fanuc/Mitsubushi/KND/GSK/SYNTEC controller could be selected according to customer's requirement

Taiwan OKADA 24pcs arm type tool magazine

Taiwan HIWIN linear guide, Japan NSK/Nachi bearing

4th axis

Processing Effect
Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
