Vertical 3/4/5axis CNC Machining Machine Center for Steel Structure and Soft Metals

Product Description

Hot Sale Alert: Elevate your manufacturing capabilities with our state-of-the-art High-Efficiency Vertical CNC Milling Machine
Product Description
Product Parameters

Model		TZ-640B
Worktable size L*W	(mm)	700x400
Work table Max. loading	kg	300
T-slots size (N×W×D)	mm	3x14x125
X/Y/Z axis travel	mm	600/400/300
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw
X/Y/Z axis linear Guide	mm	30/30/30
Spindle taper		BBT30
Max. spindle speed	rpm	20000
Spindle motor power	kw	5.5
Distance from spindle nose to workbench	mm	150-450
A.T.C capacity	pcs	21
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	3600
Machine size (L*W*H)	mm	1850*2300*2250

Main Components of the Equipment
(1) Base Our impressively robust, large-span heavy base is engineered with guide rail specifications exceeding industry norms by an outstanding 20%. This meticulous design masterfully disperses gravitational forces, maximizing processing capacity and ensuring unwavering stability, even under demanding workloads. The intelligently crafted short saddle overhang significantly elevates dynamic accuracy. Additionally, the strategic positioning of the Y-axis motor at the rear minimizes the operator's distance from the table, making it perfectly suited for managing workpieces with remarkable efficiency and enhancing overall processing convenience.
(2) Uprights (a) The pioneering herringbone column design delivers unparalleled stability and ease of maintenance, surpassing traditional single-column structures. (b) Our established herringbone structure bed design, in combination with cutting-edge gold protection and chip removal systems, effectively prevents sheet metal water leakage during installation, thus safeguarding the machine's mechanical integrity. (c) We incorporate high-strength screws for securing, drastically enhancing the column's rigidity, which minimizes vibrations during operations and guarantees unmatched stability, even amidst heavy-duty cutting tasks. (d) The thickened slint-bone structure of the shaft greatly fortifies bed rigidity, resulting in exceptional processing stability and prolonging the machine tool's lifespan.
(3) Headstock
By optimizing the contact ratio between the headstock and the column, along with integrating a short nose-end Taiwan spindle, our machine showcases superior chip cutting capability. This exceptional tool is engineered to flawlessly execute drilling, milling, tapping, boring, and other intricate processes with unparalleled precision.
(4) Precision Spindle with Exceptional Precision, Performance, and Stability (a) Crafted in Taiwan, our spindle set boasts an ingenious main shaft grab tool mechanism. Utilizing a butterfly spring on the main shaft, tension is applied to the tool handle's pull nail via a four-jaw broach mechanism, ensuring an exemplary match with the main shaft's taper hole for impeccable grab tool operation. (b) The low inertia spindle motor is engineered for excellence, offering short acceleration times that enhance tapping speed and quality. It features a spindle direct drive equipped with a spindle orientation function for unparalleled performance.
(5) Machine Tool Protection
The lathe bed guide rail (XY axis) is constructed from robust stainless steel telescopic sheet metal, while the column guide rail (Z axis) benefits from organ type and armor type protection. The machine's fully enclosed design effectively contains iron filings and coolant, ensuring a secure and comfortable working environment for operators.
(6) Power Distribution Beyond mechanical excellence, Taijing machine tools prioritize outstanding electrical design. Our CNC system is equipped with an innovative optical fiber communication mode, significantly boosting data communication speed and reducing wiring complexity, resulting in an exceptionally organized electrical cabinet.

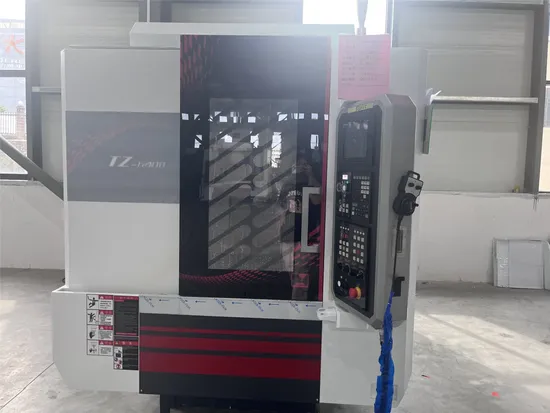

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• This machine ensures the creation of optimal processing conditions, delivering a superior production environment that truly maximizes efficiency while significantly enhancing the quality of the output.
Our state-of-the-art imported machinery, including advanced horizontal and vertical machining centers, CNC boring machines with rotating tables, and high-precision gantry guideway grinding machines, guarantees exceptional workpiece accuracy. This technological edge not only elevates assembly precision but also extends the longevity of accuracy, solidifying our dominion in the industry.
• Innovative Detection Techniques
We employ cutting-edge laser technology for thorough testing and meticulous calibration of positioning accuracy. By strictly adhering to the prestigious German VDI3411 inspection standards through five extensive tests, we assure precision that is truly without parallel.
Each machine tool is subjected to stringent processing evaluations before being dispatched, ensuring they consistently exceed actual processing accuracy requirements and deliver remarkable performance that goes beyond expectations.
Product sample
• Discover the cutting-edge capabilities of our CNC machining center, a marvel of modern engineering crafted with precision to effortlessly combine milling, drilling, and tapping functions. Experience unparalleled versatility that ensures seamless, efficient operations, empowering you to tackle a diverse range of tasks with ease.
• Expertly tailored for CNC machining on an extensive array of metal profiles such as aluminum, steel, copper, and even versatile non-metal materials, this machine revolutionizes your production landscape. It significantly enhances your operational capabilities, propelling your enterprise forward with heightened efficiency and boundless innovation.
• Ideally crafted to meet the demands of dynamic industries like 3C electronics, rail transportation, aerospace, and linear module guide rails, this machine unlocks a realm of innovation potential. It delivers unmatched precision, unwavering reliability, and supreme performance excellence, setting new standards for industry advancements.
Packaging & Shipping
•Uncompromised Protection: Rest assured, our expertly engineered packaging solutions provide the ultimate protection for your High-Performance CNC Machine for Milling Hard Metals and Alloys, featuring a BBT30 Taper. Your valuable investment is delivered in pristine condition, meticulously safeguarded with unparalleled care.
•Robust Structural Stability: Crafted with precision, our robust packaging is designed to endure the challenges of transport, ensuring exceptional stability. It guarantees maintaining the structural integrity of your CNC machine, so it arrives at its destination as flawless as when it was dispatched.
•Eco-Friendly and Fully Recyclable: With a steadfast commitment to sustainability, our packaging materials are both eco-friendly and fully recyclable. This ensures we leave a minimal environmental footprint while providing the highest level of protection, aligning with your eco-conscious values without compromising performance.
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, with the remaining 60% balance payable before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will select the most suitable machines for your needs.

---
