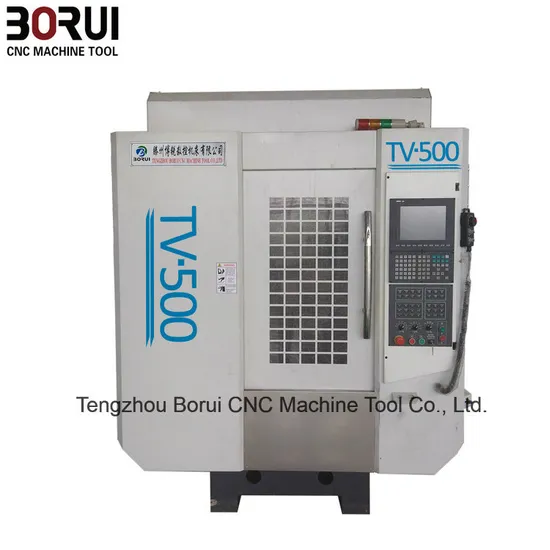

TV500 Cheap Vertical CNC Drilling and Tapping Center with Fanuc System

Product Description

TV500 Cheap vertical cnc drilling and tapping center with FANUC system

Product Description


Product main features and uses:
Such high speed 3 axis cnc tapping center hasfollowing features:
1. the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology.
2. the inner metallographic structure is very steady.
3. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis.
4. the basic parts have high steel nature by collocating with the reinforcing rib.
5. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
6. High speed and high precision spindle, max. can be 20000rpm:
7. CE Standard and CE Certificate;
Product main technical specification:

Model		Terms	TV500
Capacity	X-axis Travel	mm	500
	y-axis Travel	mm	400
	Z-axis Travel	mm	300
	Spindle nose to table surface mm	mm	150-450
	Table T slot size (No. - width-pitch)	mm	3*14*125
Spindle	Spindle Speed	rpm	200-20000,15000,12000
A.T.C	Magazine type	Armless type
	Magazine capactiy	BT30-16T
	MAX.Tool length	mm	200
	MAX.Tool weigh	kg	4
Motor	pindle power(30-minute stop-motion)	kw	3.7/5.5
	X/Y/Z-axis motor power	kw	8/8/12
Worktable	Table size	mm	650*400
	Worktable-Loading	kg	250
Fast Rapid	X-axis fast rapid	m/min	48
	Y-axis fast rapid	m/min	48
	Z-axis fast rapid	m/min	48
	Cutting feed rate	Mm/min	10
Accuracy	Positioning accuracy	mm	±0.01
	Repeatability positioning accuracy	mm	±0.005
Controller	FANUC-0i Mate/Mitsubishi
Machine size	Weight	kg	3100
	Power demand	KVA	15
	Overall Siz	mm	1760*2250*2350
	Tank capacity	L	150
	Air pressure required	Kgf/cm²	5-7

Standard accessories:
Turret tool magezine Automatic lubrication system
Cooling system Full splash guard
Pneumatic system Stainless syeel protection draw plate
Lighting system System:SIEMENS GSK FANUC (optional)
Three-color alarm lamp Fixed bolt
Optional accessories:
Air condition Cool-heat exchanger
Workpiece inspection Tool detection
Forth axis
Raoid feed speed:48/48/48 m/min

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

---
