Customized Dimension Cardboard Frame G4 Panel Type Coarse Activated Carbon Air Filter Chemical Pre-Filter Remove Volatile Organic Gas

Product Description

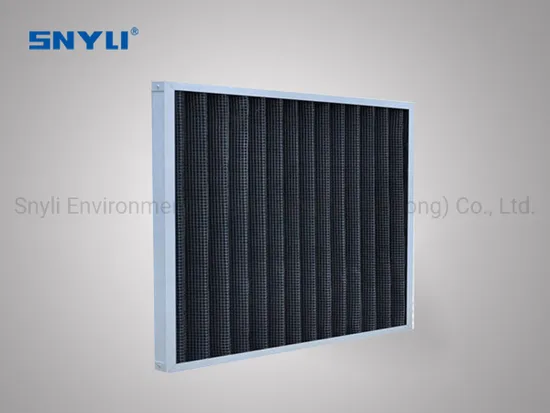

Customized Dimension Cardboard Frame G4 Panel Type Coarse Activated Carbon Air Filter Chemical Pre-Filter Remove Volatile Organic GasPleated carbon filter is an effective way to remove and prevent odors and fume. It is widely used in the air conditioners.
Fold the activated carbon materials and then support it by the paperboard sheets, metal meshes and other sheet to maintain the rigidity structure. Surround the pleated carbon filter with paperboard, foam, aluminum alloy or galvanized frames. The firm frame can extend the service life of the pleated carbon filter. Additional, the frame can make the pleated carbon filter be installed on the machines or air conditioners easily.The support layer is mainly used for maintaining the shape of the pleated carbon filter and ensuring the durability and firmness.The support layers of pleated carbon filter are various, such as the paperboard strip, expanded meal mesh, welded wire mesh and metal wire.The expanded metal paperboard layer is an entirety with the frame. It is much more economical.The activated carbon layer has various types, such as the activated carbon foam, activated carbon fiber felts or non-woven fabrics, the sandwich activated carbon cloth.
Different types of activated carbon material are suitable for more applications and can be used in more places.
The support layer is mainly used for maintaining the shape of the pleated carbon filter and ensuring the durability and firmness.
The support layers of pleated carbon filter are various, such as the paperboard strip, expanded meal mesh, welded wire mesh and metal wire. The expanded metal paperboard layer is an entirety with the frame. It is much more economical.COMMON DIMENSIONS

Nominal size W×H×D ( in.)	Actual size W×H×D ( mm)	Filter Rating (EN779:2012)	Air flow (m³/h)	Initial P.D. (Pa)	Recommended Final P.D.(Pa)
24x24x2	595x595x45	G4	3600	70	≤ 200
12x24x2	290x595x45		1800	70
24x24x4	595x595x95		3600	45
12x24x4	290x595x95		1800	45
20x24x2	495x595x45		3000	70
20x20x2	495x495x45		2500	70
12x20x2	290x495x45		1500	70
20x24x4	495x595x45		3000	45
20x20x4	495x495x95		2500	45
12x20x4	290x495x45		1500	45
Many frame options and dimensions are available on request.

ADVANCED TESTING MACHINE
We have advanced HEPA filter testing machine to test the efficiency rate,pressure drop and non leakaging. We garrantee the products we shipped out were all good quality product.
Company introductionSNYLI Environmental Technology (Shandong) Co., Ltd. (Abbr.: SNYLI) is a professional service provider of air purification products integrating R&D, design, production and sales for more than 10 years, with the registered brand of "SNYLI". We are a Company with ISO 9001:2015 and CE Certificates, our primary and medium filters are tested according to ISO 16890 and EN 779:2002. Each HEPA filter and ULPA filter will be scanned to detect possible leaks and filter performance, such as initial pressure drop and filter efficiency.
Since established in 2010, SNYLI always takes deeply contributing innovation and development of the air purification industry as its original intention and mission. With a decade of technology accumulation, SNYLI is growing up to a company with advanced manufacturing equipment, production technology, testing technology.

---
