Lightweight EPS Wall Panel Machine From China

Product Description

Introduction of wall machine production line

(Compound) heat preserving lightweight wall panel adopts the newly high technology from South Korea, which is produced with the policy of lower investment but higher profit. It includes five systems: Batching System, Mixing System, Slurry-infusing System, Molding System, and Automatic Demoulding System.

Process of producing
Material batching → mixing → slurry infusing → molding →automatic demoulding and stacking→ finished product

Specifications
1, wall panel making machines is new technology;
2,can meet your different capacity requirement
3,automatic and stable performance.

Advantages

1, Molding machine is specially designed and made to produce sandwich wall panel.
2,Reliabale mechanics performance: mechanics performance of the compound wallboards is all in the head of the wallboard include it's impact resist, perch up Strength, press, transverse resist.
3, The door frame board can or buried in advance directly because of improving the intensity of core bode, fix window frames of different types directly.
4, the product has sound insulation, fireproofing, and environmental protection.

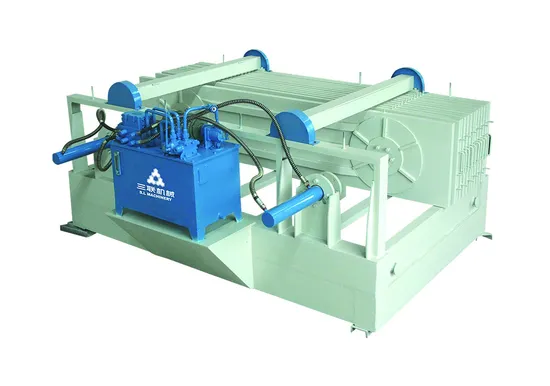

wall panel raw materials: cement, EPS, fly-ash, fiber cement board and so on. Vertical Type Wall Panel Molding Machine Technical Paraneters

Feeding Capacity	5m³
Finished Wall Panel Dimension	2440x600x75
	2440x600x90
	2440x600x100
	2440x600x120
	2440x600x150
Molding Time	Two Hours(High aluminium cement)
Mould Clearance	2mm
Numbers of Pallet Provided Per Time	75mm	46PCS
	90mm	40PCS
	100mm	36PCS
	120mm	30PCS
	150mm	26PCS
Installed Capacity	≈65kw
Maximum Pressure of System	≈16Mpa(vertical type overturn cart)
