16m Aerial Work Platform Scissor Lift

Product Description

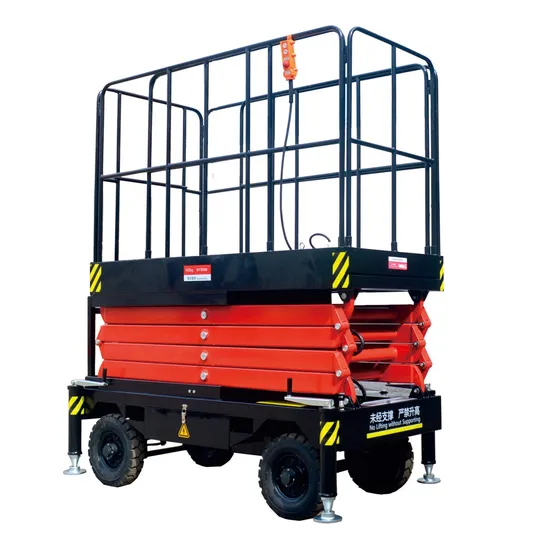

Mobile Scissor Lift (Economic Type):
Application:Aerial working with heavy loading
Max height of platform:6m,7.5m,9m,11m,12m,14m,16m for option.
Features:
1.Made of Manganese steel, enabling heavy loading
2.Scissor mechanism provides high stability when lifting
3.More than one operator could be carried simultaneously with equipped large platform
4.Mainly used in station, dock, plant and construction site for aerial working in case of machinery installation, equipment and building maintenance
Standard Configuration:
1.AC380V
2.Emergency Lowering valve
3.Leveling device with supporting screw
4.Waterproof electric box
5.Emergency stop button

Parameters
Model	SJY0.45-6	SJY0.45-7.5	SJY0.45-9	SJY0.45-11	SJY0.45-12	SJY0.45-14	SJY0.3-16
Max Platform height(mm)	6000	7500	9000	11000	12000	14000	16000
Min Platform height(mm)	980	1250	1500	1600	1700	1800	1980
Platform Size(mm)	1800*900	1800*1000	1800*1000	2100*1150	2450*1350	2450*1350	2800*1500
Rated Load(kg)	450	450	450	450	450	450	300
Lifting times(s)	54	72	83	88	90	120	145
Voltage(V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Motor Power(Kw)	1.5	1.5	2.2	3	3	4	5
Overall length (mm)	2000	2000	2000	2250	2600	2600	2950
Overall width (mm)	1080	1200	1200	1350	1550	1550	1750
Overall height (mm)	980	1250	1500	1600	1600	1800	2180
Extended outrigger size(mm)	600	700	700	700	700	800	850
Over weight(kg)	650	1100	1260	1380	1850	2500	2700

• Company Certificates
• Part or Customers
• Packing
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.

---
