650ton Wire Rope Crimping Machine Cable Swaging Machine Steel Tube Shrinking Machine

Product Description

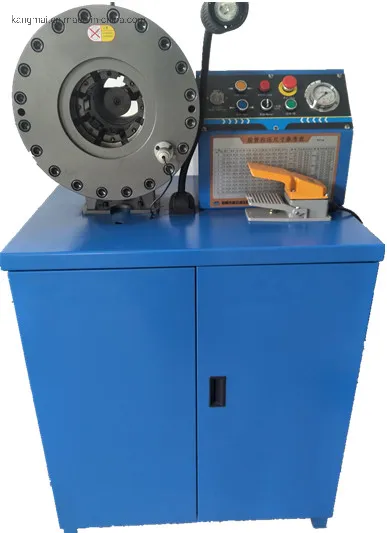

Technical Data Of KM-91M-J Heavy Hydraulic Crimper Machine

Model NO.	KM-91M-J
Crimper Rage	6-32mm
Swaging Force	900Ton
Standard Voltage&Motor	380V/50Hz/3PH; 5.5kW
Opening Without Dies	φ122mm
Opening	≥38mm
Open Time	≤ 4s
Close Time	≤ 22s
Capacity Of Oil Pump	46L/min
Systematic Pressure	30Mpa
Hydrauli Oil	Wnter: YB-N32; Summer: YB-N46
Volume Of Oil Tank	120L
Weight	395Kg
Volume (L*W*H)	800*630*1400(mm)
No. of die sets	10 sets

Note: the voltage & die sizes can be customized according to your needs
Advantages Of KM-91M-J Heavy Hydraulic Crimping Machine
1).Low center of gravity, easy to operate;
2).Huge opening with large swaging force;
3).Mechanical seals with good tightness;
4). High efficiency, available for continuous operation
Applications Of Heavy Hydraulic Crimping Machine KM-91M-J
1).Suitable for high precision pressing for rebar, wire rope, etc
2).For oil pipeline, oil engineering maintaince.
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leak or broken. The reasons are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
