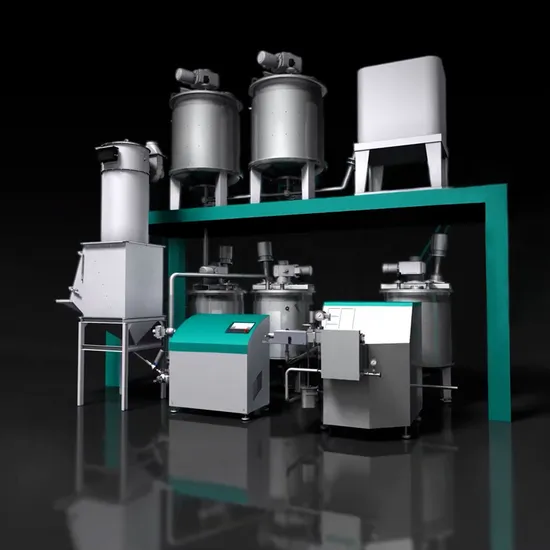

Battery Ion Full Automatic Production Line Auto High-Speed Slurry Planetary Mixer Production System

Product Description

Detailed Photos
Product Description 1)Base material dispersing mixer/Vacuum kneader,
2)High viscosity pump
3)Base storage tank,
4)heating system(according to actual requirements)
5)Vacuum system,
6)Three roller grinding machine(according to actual requirements)
7)multifunctional-dispersing machine
8)Hydraulic discharging machine,
9)Cooling system,
10)Sealant filling machine( plastic bottle filling machine,film filling machine)
11)Raw material storage tank
12)Oven,
13)Batching system,

model	feeding voluma	planetary motor	high-speed motor	Revolution speed	Rotation speed	High speed dispersion speed
DLH-6L	3.6	1.5	1.5	27	43	0~1000
DLH-20L	12	3	3	27	43	0~1000
DLH-60L	36	4	4	27	43	0~1000
DLH-100L	60	7.5	5.5	27	43	0~1000
DLH-200L	120	15	11	27	43	0~1000
DLH-350L	210	18.5	18.5	27	43	0~1000
DLH-600L	360	22	22	27	43	0~1000
DLH-1000L	600	37	30	23	43	0~1000
DLH-1500L	900	45	45	23	43	0~1000
DLH-2000L	1200	55	45	23	43	0~1000

Production process
1)Pulp part
The solvent through the liquid metering device is added to the liquid material groove , by Vacuum suction to emulsifying kettle , start low speed anchor mixer , the powder material is sucked into the vacuum emulsifying tank for continuous stirred 10 minutes , then turn on the two sets of vertical high shear emulsifying 10 minutes , finally use horizontal emulsion machine , continuous cycle 30 minutes , finished slurry . A high shear inside the tank and an emulsion pump outside the tank are also used ,Ensure further refinement of materials , and greatly shorten the operation time
2)Paint part
By vacuum , resin , film-forming agent from the liquid tank into the low-speed stirred tank the bag filter is sucked into the low-speed mixer , the emulsion or solvent ,additives , slurry mixing , then adding additives ( thickener ) , blending paint .
3 ) Filter packing
After a good tune paint , vacuum defoaming after 5 minutes , stirring was stopped by a bag coating to semi-automatic filling machine for packaging , When the coating material using a two bag filters , can be switched with each use , does not affect the filling speed

---
